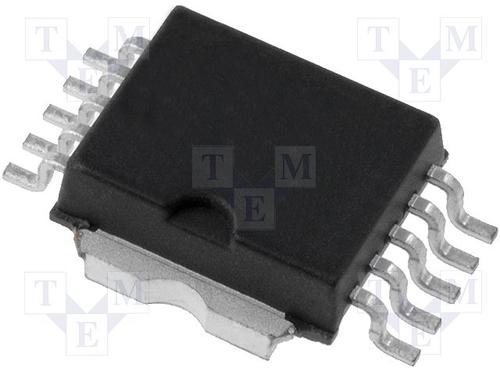

VN600系列 Power SO 10 双通道 单片 高边 固态继电器
Do your circuit specifications require switching between low and high currents and voltages? STMicroelectronics" high side power switch is your solution. This charge controller has 2 outputs. This device has a maximum power dissipation of 96100 mW. It features 0.03Max Ohm switch on resistance. This device has a supply current of 6Max mA and a minimum output current of 25 A. Its maximum power dissipation is 96100 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This charge controller has a minimum operating temperature of -40 °C and a maximum of 150 °C.
额定功率 96.1 W
输出接口数 2
输出电流 25 A
供电电流 6 mA
通道数 2
针脚数 10
耗散功率 96.1 W
输出电流Max 25 A
输出电流Min 25 A
输入数 2
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 96100 mW
电源电压 5.5.36 VDC
输入电压 13 V
安装方式 Surface Mount
引脚数 12
封装 PowerSO-10
高度 3.65 mm
封装 PowerSO-10
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VND600SPTR-E ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
VND600SP13TR 意法半导体 | 类似代替 | VND600SPTR-E和VND600SP13TR的区别 |
VND600SP 意法半导体 | 类似代替 | VND600SPTR-E和VND600SP的区别 |
VND600SP-E 意法半导体 | 功能相似 | VND600SPTR-E和VND600SP-E的区别 |
