VLF10040T-1R5N8R9

固定电感器

固定器

得捷:
FIXED IND 1.5UH 8.9A 6.2MOHM SMD

艾睿:

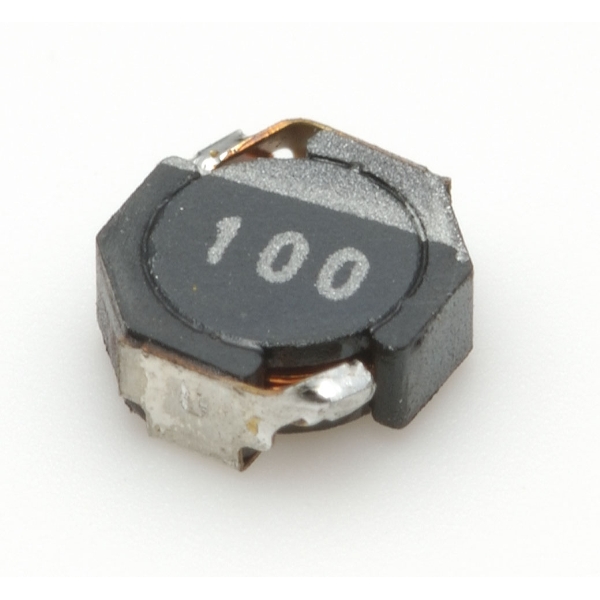

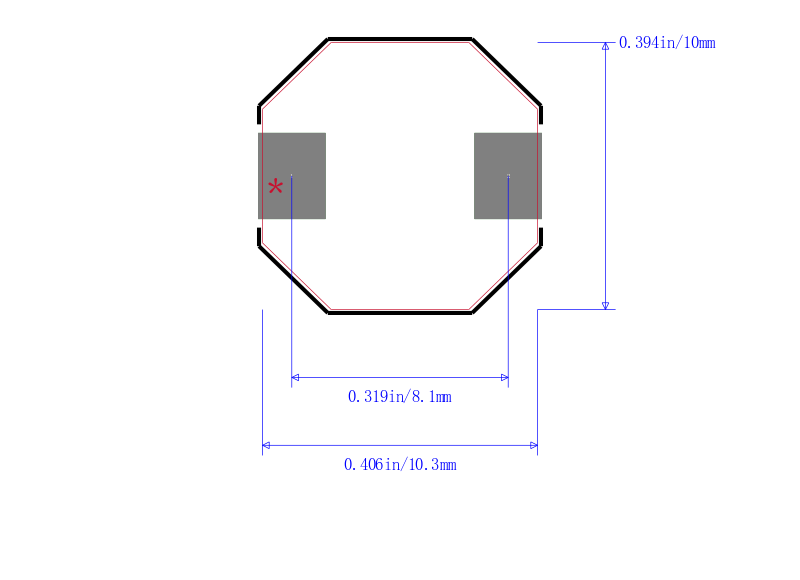

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power VLF10040T-1R5N8R9 surface mount inductor from TDK to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 1.5u H. This device utilizes wirewound technology. This product is 10.4 mm long, 4 mm tall and 10.1 mm deep. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 8.9Typ A with a maximum resistance of 6.2m Ohm.

安富利:
Ind Power Shielded Wirewound 1.5uH 30% 100KHz 8.9A T/R

Chip1Stop:
Ind Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 8.9A T/R

Verical:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 8.9A 6.2mOhm DCR T/R
