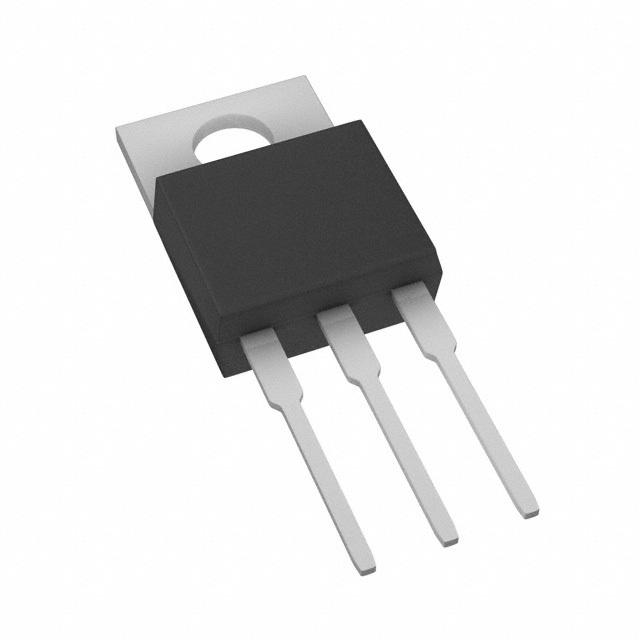

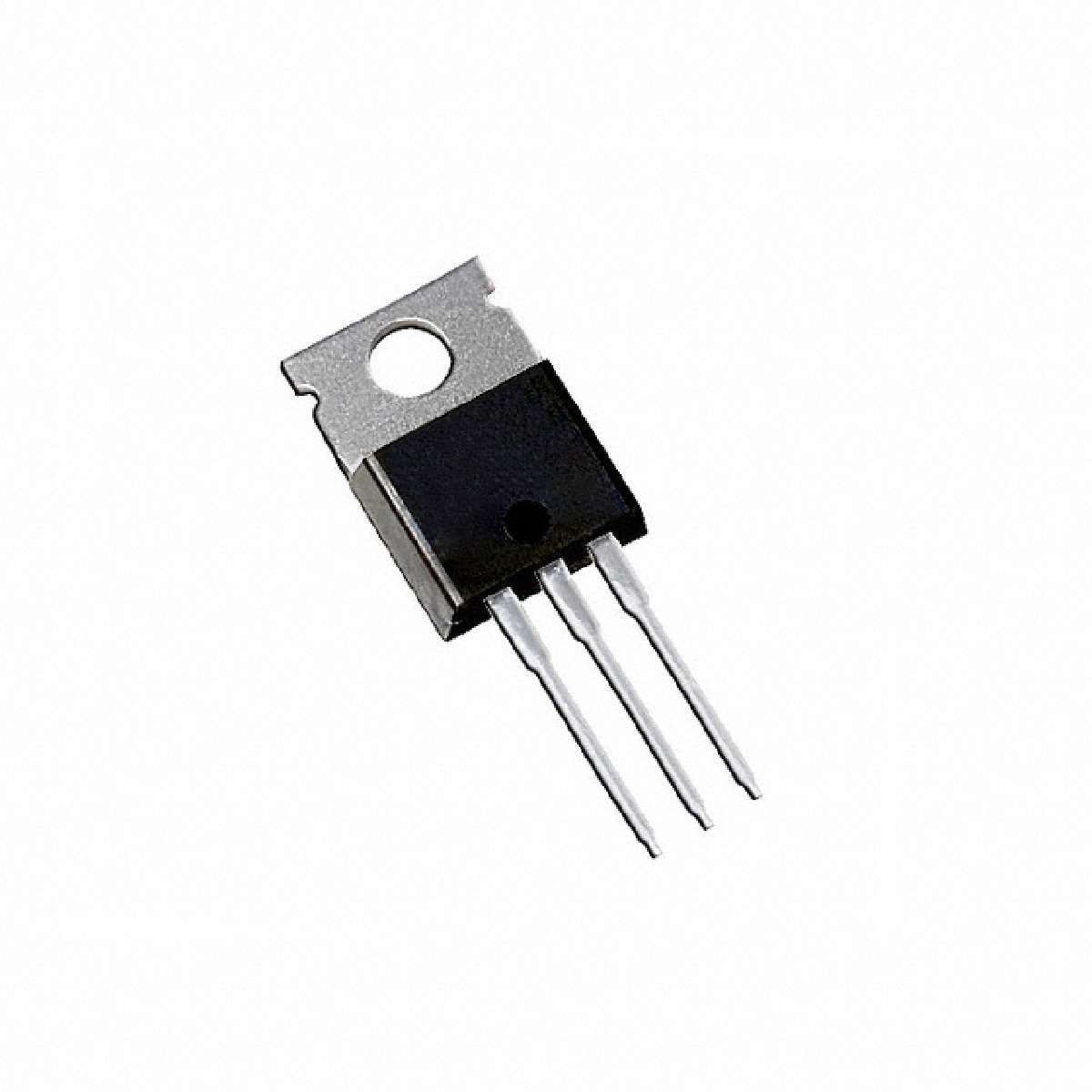

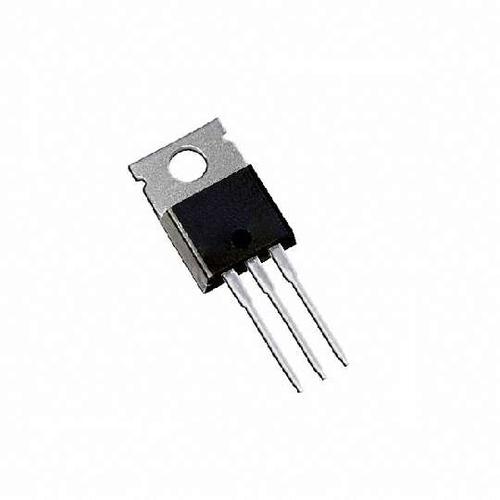

VISHAY VS-48CTQ060PBF. 肖特基整流器, 双共阴极, 60 V, 20 A, TO-220AB, 3 引脚, 610 mV
The is a centre-tap Schottky Rectifier optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. It features high purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance. Typical applications are in switching power supplies, converters, free-wheeling diodes and reverse battery protection.
- .
- High frequency operation
- .
- Guard-ring for enhanced ruggedness and long term reliability
- .
- Halogen-free
针脚数 3
正向电压 0.61 V
热阻 1.5℃/W RθJC
正向电流 20 A
最大正向浪涌电流（Ifsm） 1 kA
正向电压Max 610 mV
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.67 mm
宽度 4.83 mm
高度 9.02 mm
封装 TO-220-3
工作温度 -55℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-48CTQ060PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
48CTQ060 威世 | 类似代替 | VS-48CTQ060PBF和48CTQ060的区别 |
