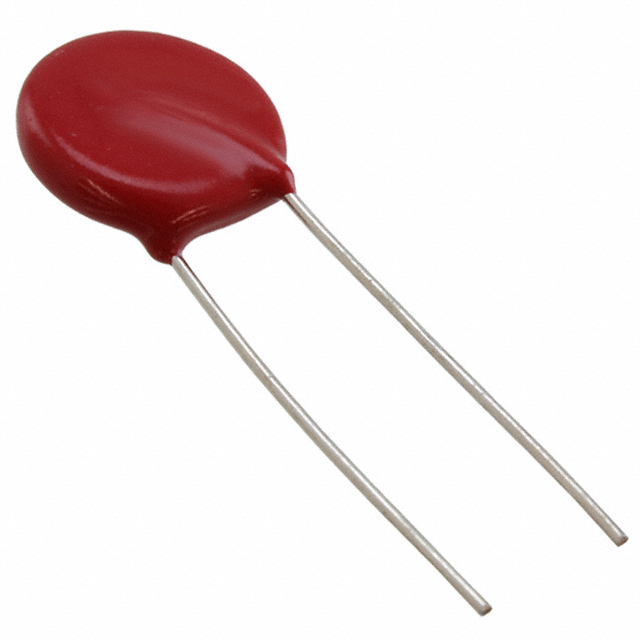

V275LA10CP

径向引线压敏电阻 Radial Lead Varistors

430 V 3.5 kA 变阻器 1 电路 通孔 圆片式 10mm

得捷:
VARISTOR 430V 3.5KA DISC 10MM

立创商城:
V275LA10CP

艾睿:
Apply different voltages to this V275LA10CP MOV from Littelfuse in order to change resistance of it. This device&s;s clamping current is 25 A and clamping voltage is 710 V. Its maximum surge current is 3500 A. This part has a pitch of 8.5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 473 V. This device utilizes metal oxide technology. The maximum AC voltage rating is 275 VAC. This product is 16 mm tall and 7.3 mm deep with a diameter of 12.5 mm.

Chip1Stop:
Var MOV 275VAC 3500A 473V Radial Bulk
