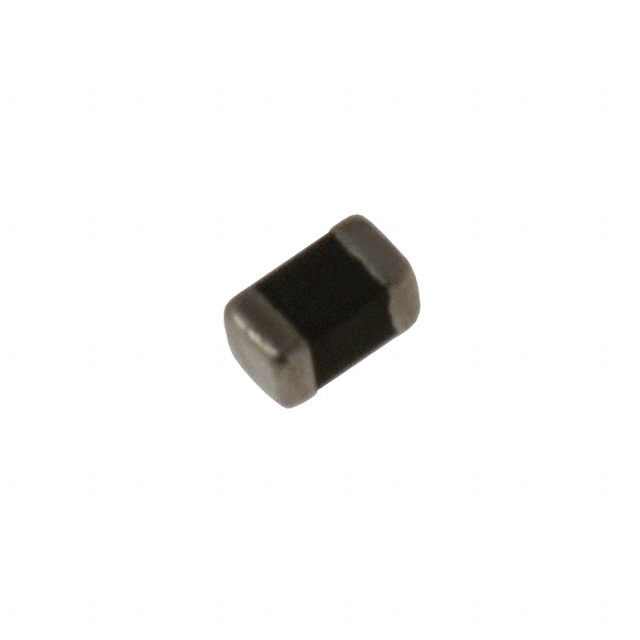

V9MLA0402LNR

ML系列 9 VDC 6.5V RMS 35V 钳位 4A 33pF 表面贴装 压敏电阻

Description

The MLA Series also known as "ML" series family of transient voltage surge suppression devices is based on the Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance EMC. The MLA Series is typically applied to protect integrated circuits and other components at the circuit board level.

Features

• RoHS compliant

•  Leadless 0402, 0603, 0805, 1206 and 1210 chip sizes

• Multilayer ceramic construction technology

•  -55°C to +125°C operating temp. range

•  Operating voltage range VMDC = 5.5V to 120V

•  Rated for surge current 8 x 20μs

•  Rated for energy 10 x 1000μs

•  Inherent bi-directional clamping

•  Standard low capacitance types available

Applications

•  Suppression of inductive switching or other transient events such as EFT and surge voltage at

the circuit board level

•  ESD protection for IEC 61000-4-2, MIL-STD-883c method 3015.7, and other industry specifications see also the MLE or MLN Series

• Provides on-board transient voltage protection for ICS and transistors

•  Used to help achieve electromagnetic compliance of end products

•  Replace larger surface mount TVS Zeners in many applications
