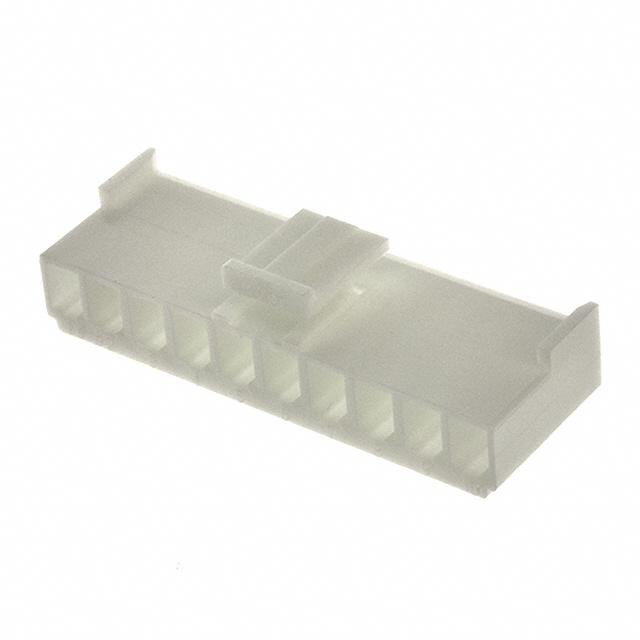

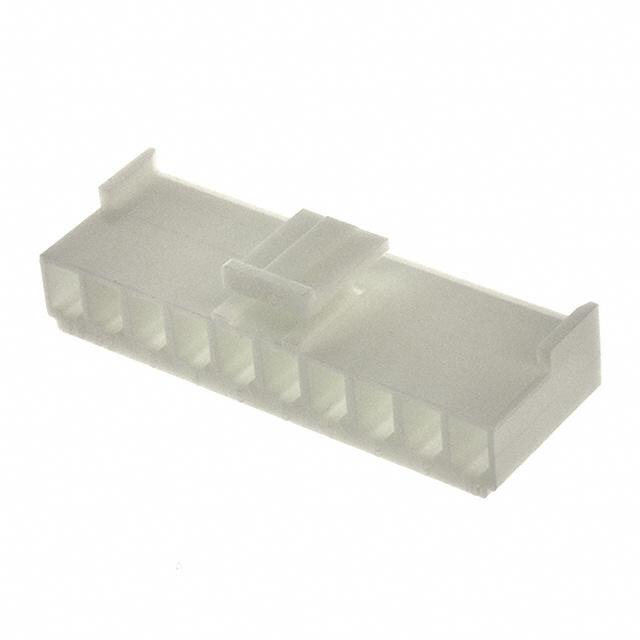

VHR-10N

JST JAPAN SOLDERLESS TERMINALS  VHR-10N  线至板连接器, VH系列, 10 触点, 插座, 3.96 mm, 压接, 1 排

VH Series Housings

These VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors from are suitable for use in a signal, power supply or output circuit applications. The compact size and large capacity coupled with secure locking contact and mounting are the special features of these VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors. The above board heights of the mated VH Series connectors are 16.5 mm for the Top Entry and 10.5 mm for the Side Entry type.

Temperature range: -25 → 85 °C

Housing material: PA6 UL94V-0, natural

### 注

Mates with VH Series Headers, see stock number 762-0705 typical.
