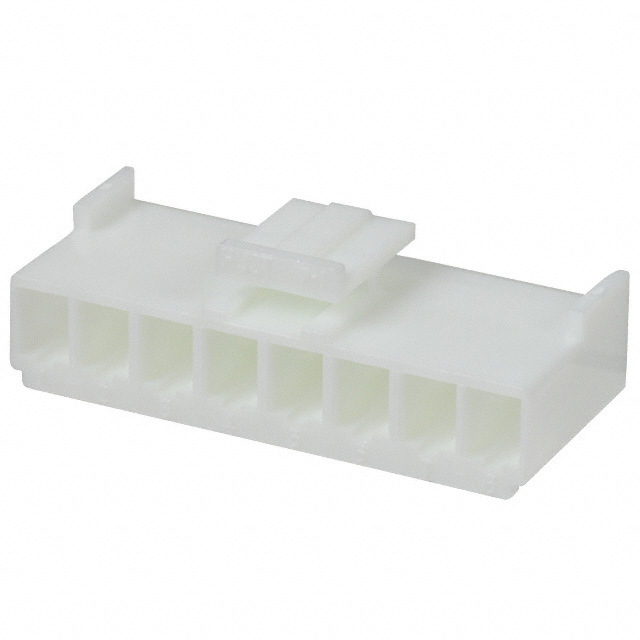

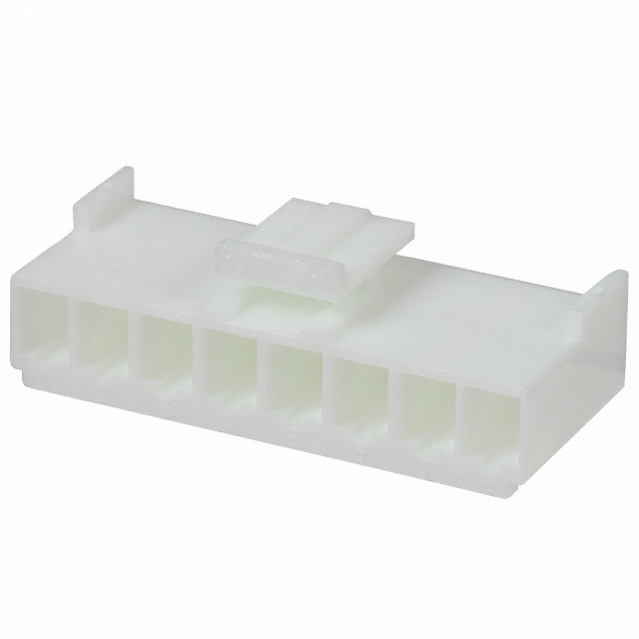

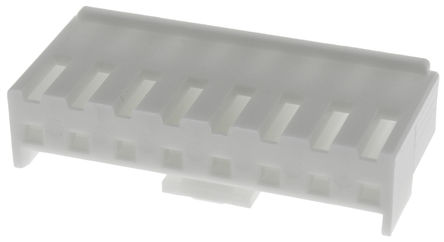

JST JAPAN SOLDERLESS TERMINALS VHR-8N 线至板连接器, VH系列, 8 触点, 插座, 3.96 mm, 1 排
VH Series Housings
These VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors from are suitable for use in a signal, power supply or output circuit applications. The compact size and large capacity coupled with secure locking contact and mounting are the special features of these VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors. The above board heights of the mated VH Series connectors are 16.5 mm for the Top Entry and 10.5 mm for the Side Entry type.
Temperature range: -25 → 85 °C
Housing material: PA6 UL94V-0, natural
### 注
Mates with VH Series Headers, see stock number 762-0705 typical.
### JST VH 3.96mm 节距
JST VH 连接器系列是线对板 3.96 mm 节距可断开压接系统。 这些 JST VH 连接器的设计包括不可锁定摩擦锁定,提供牢固接触和安装。 JST VH 连接器系列的大电流载流量使其可用于各种信号、电源和输出电路应用。
触点数 8
极性 Female
额定电流 10 A
绝缘电阻 1000 MΩ
排数 1
针脚数 8
额定电流Max 10 A
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 250 V
引脚数 8
封装 DIP
引脚间距 3.96 mm
长度 31.62 mm
宽度 10.5 mm
高度 13.3 mm
封装 DIP
引脚间距 3.96 mm
外壳颜色 White
颜色 Natural
材质 Nylon
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
