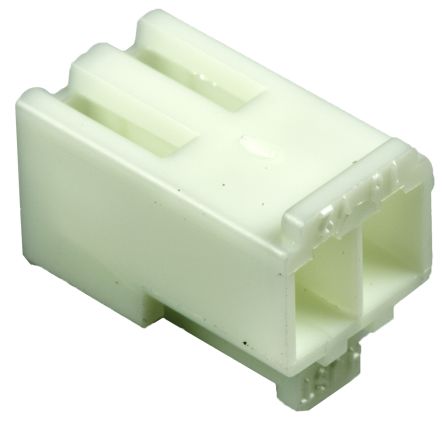

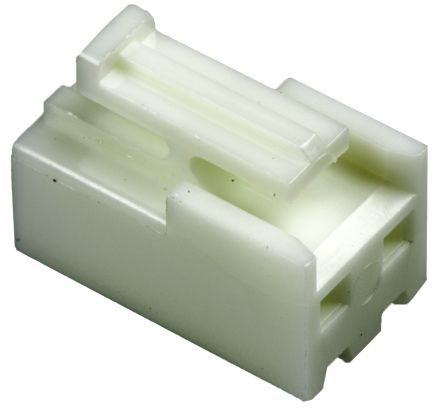

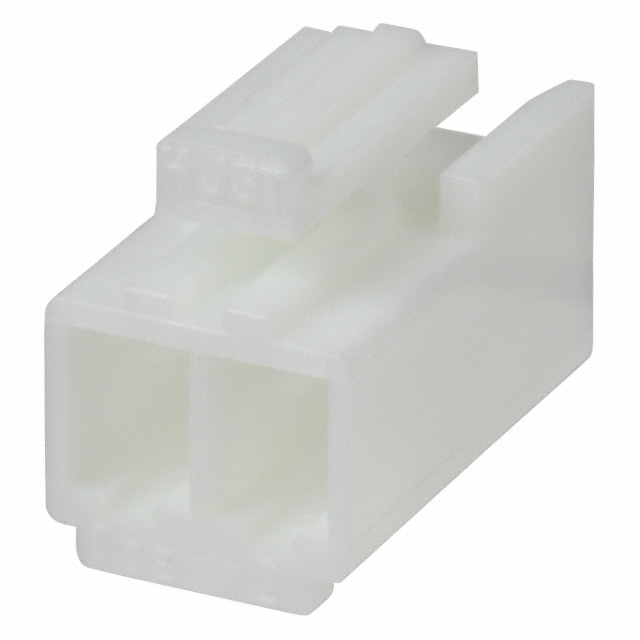

JST JAPAN SOLDERLESS TERMINALS VHR-2N 线至板连接器, VH系列, 2 触点, 插座, 3.96 mm, 压接, 1 排
公司的VH系列 N型外壳为3.96mm间距, 单排外壳, 用于VH系列压接触芯. 外壳上的触芯锁定杆允许视觉确认接触锁定, 以便方便安全得插入.
欧时:
### 板连接器 VH 触点外壳JST 的一系列压接触点和外壳,适合与 VH 系列线对板连接器一起使用。 VH 系列外壳紧凑且耐用,达到 UL 94V-0 等级,并具有自然(白)色。 ### VH 系列还包括: 有关 VH 触点,请参见库存号 820-1163 和 353-1917 VH 电缆组件,带预接线触点: 820-1131 为 150 长,两端具有 SVH-21T-P1.1 触点。 820-1135 为 300 长,两端具有 SVH-21T-P1.1 触点。 触点:BVH-21T-P1.1 | ---|--- 线范围 | 0.33 → 0.83mm2,AWG #22 → 18 电线护层直径 | 1.7 → 3 mm | 磷青铜,镀锡 外壳 | 尼龙 6 UL94V-0,自然(白色) | ### 注触点,用于单独出售的外壳(RS 部件号 353-1917)。 ### 3.96mm 线对线连接器 JST VH 系列The VH Series of 3.96mm pitch Wire-to-Board Connectors from JST are capable of carrying a large current in a compact size. Design features for the VH Series include box contacts, polarized housings and secure locking. 高可靠性、小尺寸、大数量连接器,用于印刷电路板,可实现大范围设备的连接,包括消费性电子设备的信号电路以及电源电路和输出电路。 额定电流 | 7.0 A 交流/直流(使用 AWG #18 时) ---|--- 额定电压 | 250V 交流/直流 工作温度范围 | -25 °C → +85 °C(包括通电时的温度升高值) 触点电阻 | 初始/小于等于 10 mΩ | 环境测试后/小于等于 20 mΩ 绝缘电阻 | 至少 1000 MΩ Vs. 电压 | 1500 V 交流/1 分钟 线范围 | AWG #22 → #18 兼容的印刷板厚度 | 1.6 mm 已注册标准 | E 60389 认证 | LR20812 认证 | R75122(符合 DIN / VDE 0627 标准)
立创商城:
3.96mm 1x2P
得捷:
CONN RCPT HSG 2POS 3.96MM
艾睿:
When using discrete wires in a project you should use this VHR-2N discrete wire housing from JST Corporation if a direct socket to board linkage is not functional. This PL connector has 2 PL contacts. It has a straight body orientation. It has a plug type gender. This is a 1-row connector. It has a maximum voltage rating of 250 VDC|250VAC. Its pitch is 3.96 mm. This device has a maximum current rating of 10 A. VHR-2N is housed in white polyamide 6/6. Its wire is 16-22 AWG. This product is 7.86 mm long, 10.5 mm tall and 13.3 mm deep. This rectangle connector has an operating temperature of -25 to 85 °C.
TME:
Plug; wire-board; female; VH; 3.96mm; PIN:2; w/o contacts; 250V; 10A
Verical:
Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount White Bag
Newark:
Wire-To-Board Connector, 3.96 mm, 2 Contacts, Receptacle, VH Series, Crimp, 1 Rows
Online Components:
VH-N Connector Housing - 2 Positions - Natural
CDI:
Housing, 2Circuit, 3.96mmPitch
Win Source:
CONN HOUSING VH 2POS 3.96MM WHT
触点数 2
极性 Female
触点电镀 Tin
额定电压AC 250 V
额定电流 7.00 A
绝缘电阻 1000 MΩ
排数 1
针脚数 2
额定电流Max 10 A
工作温度Max 85 ℃
工作温度Min -25 ℃
安装方式 PCB
引脚数 2
封装 P=3.96mm
引脚间距 3.96 mm
长度 7.86 mm
宽度 10.5 mm
高度 13.3 mm
封装 P=3.96mm
引脚间距 3.96 mm
外壳颜色 White
颜色 Natural
触点材质 Phosphor Bronze
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VHR-2N JST 日本压着端子 | 当前型号 | 当前型号 |
1-1123722-2 泰科 | 类似代替 | VHR-2N和1-1123722-2的区别 |
