V6D1A60B-AEC00-000

V6D1A60B-AEC00-000图片1
V6D1A60B-AEC00-000图片2

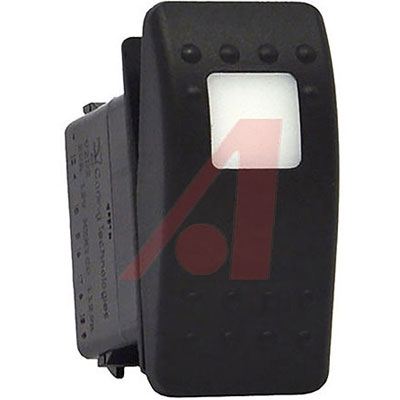

V6D1A60B-AEC00-000图片3
V6D1A60B-AEC00-000概述

翘板开关 SPDT ON-OFF-ON 20A 12V GrnLED/Ambr Lens

V Series Contura Sealed Rocker Switch

* Seals out water, dust and debris

* Maximum design options with minimum inventories

* Multiple lighting options

V-Series switches offer countless unique options including choices for ratings, colors, illuminations and symbols. These switches feature removable actuators in a choice of actuator styles and colors, and are available in single or double pole configuration


贸泽:
翘板开关 SPDT ON-OFF-ON 20A 12V GrnLED/Ambr Lens


Allied Electronics:
Switch, Rocker, SINGLE POLE, ON-OFF-ON, 20 AMP, 12 VOLT


安富利:
Switch Rocker ON OFF ON SPDT Quick Connect Rocker 20A 12VDC 150000Cycle


V6D1A60B-AEC00-000中文资料参数规格
技术参数

额定电压DC 12.0 V

额定电流 20.0 A

绝缘电阻 50 MΩ

针脚数 3

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 12 VAC

封装参数

安装方式 Solder Tab, Panel

外形尺寸

长度 34.8 mm

宽度 16.9 mm

高度 40.3 mm

物理参数

工作温度 -40℃ ~ 85℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买V6D1A60B-AEC00-000
型号: V6D1A60B-AEC00-000
制造商: Carling Technologies 嘉灵科技
描述:翘板开关 SPDT ON-OFF-ON 20A 12V GrnLED/Ambr Lens
