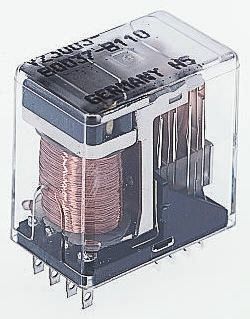

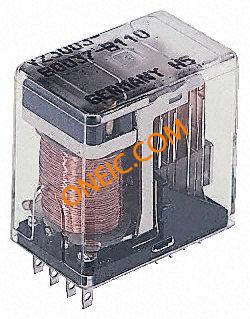

P Series cradle relay, bistablePolarised DC coil, bistable Plug-in and for fixed installation Two or four-pin toggling Dustproof **Note:** Normal position of NOC 1 open, NCC 2 closed If positive voltage on connection 3 or 4, the relay assumes the normal position Order designation, Block 3 | B1... ---|--- Contact material | Silver, gold-flashed Contact load: | Max switching voltage: | 150 V DC/125 V AC Max. switching current: | 2 A Max. switching capacity: | 35-70 W, 50 VA | voltage-dependent Order designation, Block 3 | | B110 ---|---|--- Contact design | | Single Contact assignment | | 21-21-21-21 Description | Winding | Voltage range at 20 °C, VDC | Coil resistance at 20 °C ±10% Ω ---|---|---|--- | | | V23003- | | | A37-B104 | I | 19.5 → 26.5 | 4001 Size I | II | 19.5 → 25 | 340 1 ±15% Response voltage: | 63 → 73 % of the nominal voltage ---|--- permitted Ambient temperature: | -40 → +70 °C Protection class: | Dust-proof, IP30 Model size: | 30 x 19 x 30 mm ### 电源继电器
P 系列悬挂式继电器，双稳态
极化直流线圈，双稳态
插入式且用于固定安装
两个或四个引脚切换
防尘
**注意：**
正常位置 NOC 1 打开，NCC 2 闭合
如果连接 3 或 4 上有正电压，则认为继电器处于正常位置
Order designation, Block 3 | B1...
---|---
Contact material | Silver, gold-flashed
Contact load: |
Max switching voltage: | 150 V DC/125 V AC
Max. switching current: | 2 A
Max. switching capacity: | 35-70 W, 50 VA
| voltage-dependent
Order designation, Block 3 | | B110
---|---|---
Contact design | | Single
Contact assignment | | 21-21-21-21
Description | Winding | Voltage range at 20 °C, VDC | Coil resistance at 20 °C ±10% Ω
---|---|---|---
| | |
V23003- | | |
A37-B104 | I | 19.5 → 26.5 | 4001
Size I | II | 19.5 → 25 | 340
1 ±15%
Response voltage: | 63 → 73 % of the nominal voltage
---|---
permitted Ambient temperature: | -40 → +70 °C
Protection class: | Dust-proof, IP30
Model size: | 30 x 19 x 30 mm
