标准LED-SMD Yellow Green 573nm
**VAOL Series SMD s**
A selection of surface mount LED solutions from VCCs extensive line of LEDs products. The VAOL series is compatible with infrared and vapor phase reflow solder process. These LEDs are available in various sizes and have a wide choice of LED emitting Colors to suit your Optoelectronics applications.
得捷:
LED YELLOW/GREEN CLEAR 1206 SMD
贸泽:
标准LED-SMD Yellow Green 573nm
艾睿:
LED Uni-Color Yellow Green 575nm 2-Pin Chip 12063216Metric T/R
Allied Electronics:

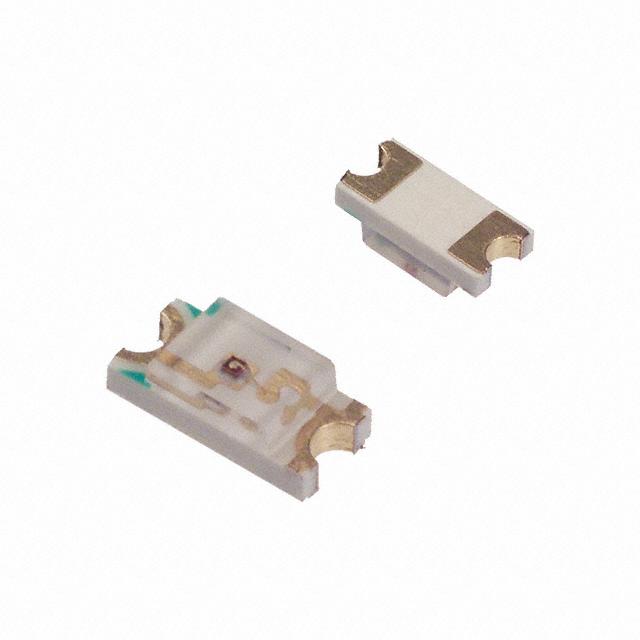

VAOL-S12GT4, VAOL Series Green, Yellow LED, 573 nm SMD package
Chip1Stop:
1206 SMD TYPE LED
Verical:
LED Uni-Color Yellow Green 575nm 2-Pin Chip 12063216Metric T/R
Newark:
# VCC VISUAL COMMUNICATIONS COMPANY VAOL-S12GT4 LED, Green, SMD, 1.5mm x 2mm, 20 mA, 2 V, 573 nm
MASTER:
LED 1206 Yellowish Green 2K Reel
Online Components:
LED Uni-Color Yellow Green 575nm 2-Pin Chip 12063216Metric
CDI:
YELLOWISH GREEN 1206, 2K REEL
Electro Sonic:
LED 1206 Yellowish Green 2K Reel
正向电压 2 V
波长 573 nm
发光强度 15 mcd
视角 130°
峰值波长 575 nm
耗散功率 60 W
测试电流 20 mA
正向电流 25 mA
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 60 mW
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.5 mm
高度 1.1 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8541402000
