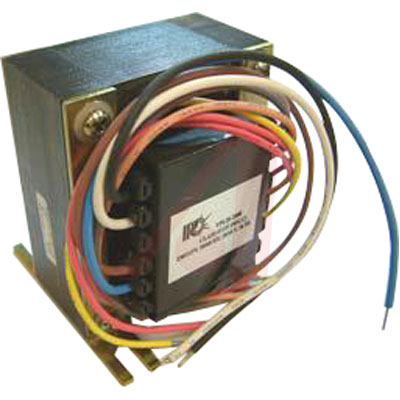

VPL28-2000

电源变压器 Power Transformer, Chassis Mount, Leads, 56 V A, 14/28VDC Nominal Secondary Output, 28VDC at 2A Secondary in Series, 14VDC at 4A Secondary in Parallel, 6Pin

TRIAD International Series Transformers are constructed with European style split bobbins to meet International Safety Agency Standards. The split bobbin construction reduces interwinding capacitance and eliminated the need for electrostatic shielding. 8", –0, +1" Leads.

**Features:**

* The International Series Is Available in Sizes from 5 VA to 56 VA

* 115/230 V 50/60 Hz Primary Windings

* 3500 V Isolation Between Primary and Secondary

* Designed with 6 mm Creepage Distance Primary to Secondary
