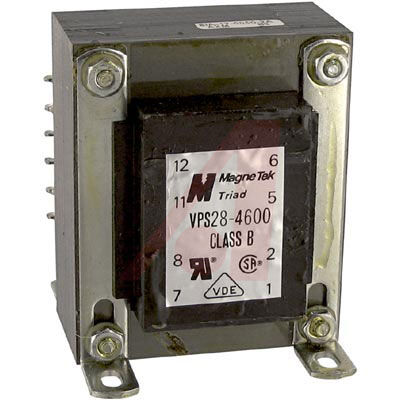

VPS28-4600

Power Transformer 4000Vrms Dual Prim. Dual Sec. 230V/115V Prim. 28V/14V Sec. Chassis Mount

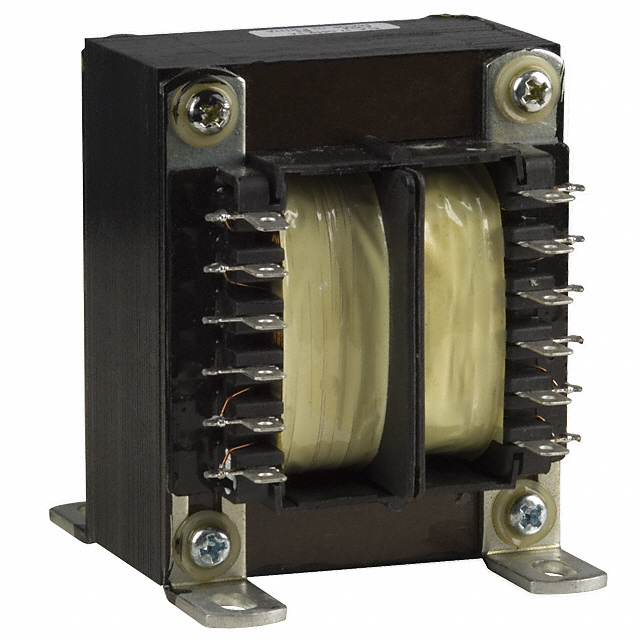

TRIAD Magnetics chassis mount world Series transformers are designed to meet U.S. and international standards including CSA, IEC, VDE and UL Requirements. The transformers consist of a dual bobbin design positioned inside an insulating shroud, and constructed with UL Approved high temperature material. This design eliminates the need for electrostatic shielding since there is minimal capacitance between coils when using a dual bobbin configuration. The primary and secondary are both electrically isolated from each other, and from the core itself. Chassis Mount World Series transformers are available in sizes ranging from 25 VA to 175 VA, and are equipped with convenient

.

*“quick-connect” terminations**. **Technical Notes:** 1\. Hi pot tested at 4000 RMS. 2. Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously. **Specifications. Primary:** 115/230 V, 50/60 Hz.

**Features:**

* Made in China

* Some Units Are UL-Class 2/Class 3
