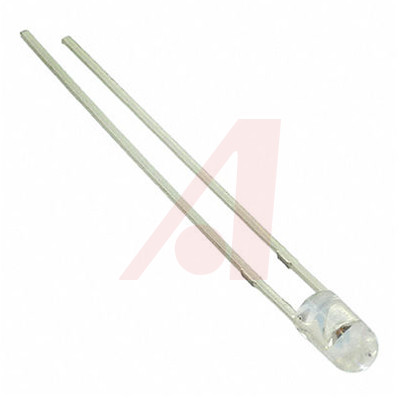

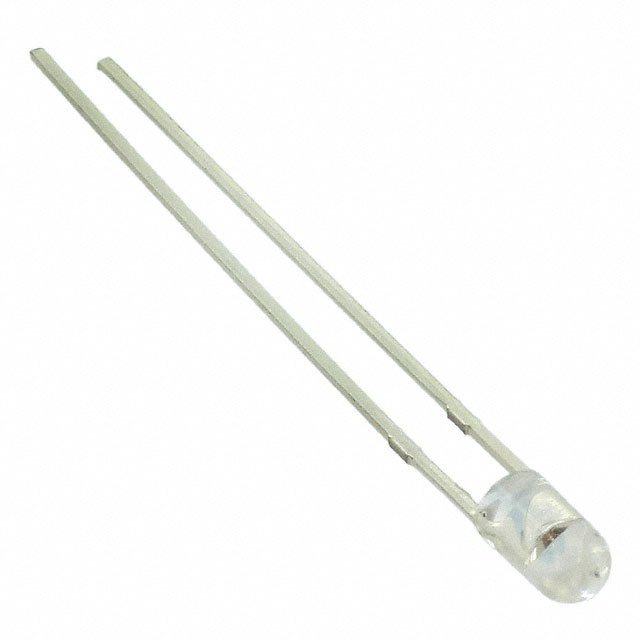

Standard LEDs - Through Hole Yellow Water Clear 590nm 150mcd
**Standard/ Superbright LED Lamps**
A range of standard and super-bright LED lamps from VCC. These lamps are suitable for commercial outdoor applications, front panel indicators and DOT matrix display modules.
得捷:
LED YELLOW CLEAR T/H
贸泽:
Standard LEDs - Through Hole Yellow Water Clear 590nm 150mcd
艾睿:
LED Uni-Color Yellow 2-Pin Bag
Allied Electronics:
LED; 3MM YELLOW FLANGELESS LED
MASTER:
LED 3mm Yellow Flangeless
Online Components:
LED Uni-Color Yellow 2-Pin
CDI:
3MM YELLOW FLANGELESS LED
Electro Sonic:
LED 3mm Yellow Flangeless
正向电压 1.8 V
波长 590 nm
发光强度 150 mcd
视角 30°
测试电流 20 mA
正向电流 20 mA
正向电压Max 2 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min 40 ℃
耗散功率Max 120 mW
安装方式 Through Hole
引脚数 2
封装 T-1
高度 5.25 mm
封装 T-1
颜色 Yellow
工作温度 -40℃ ~ 85℃
外观颜色 Transparent
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
HTS代码 8541402000
