VSC7123RD

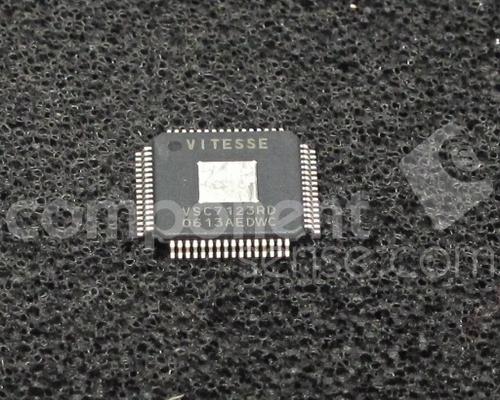

VSC7123RD图片1
VSC7123RD概述

ETHERNET TRANSCEIVER, 64Pin Plastic QFP

General Description

The VSC7123 is a full-speed Fibre Channel and Gigabit Ethernet Transceiver with industry-standard

pinouts. The VSC7123 accepts 10-bit 8B/10B encoded transmit data, latches it on the rising edge of REFCLK and serializes the data onto the TX PECL differential outputs at a baud rate which is 10 times the REFCLK frequency.

Features

•  802.3z Gigabit Ethernet-Compliant 1.25 Gb/s Transceiver

•  ANSI X3T11 Fibre Channel-Compliant 1.0625 Gb/s Transceiver

•  0.98 to 1.36 Gb/s Full-Duplex Operation

•  10-Bit TTL Interface for Transmit and Receive Data

•  Automatic Lock-to-Reference

•  RX Cable Equalization

•  Analog/Digital Signal Detection

•  JTAG Access Port for Testability

•  Single +3.3V Supply, 650mW Typical

•  Packages: 64-Pin 10mm and 14mm PQFP and 10mm TQFP

VSC7123RD中文资料参数规格
封装参数

安装方式 Surface Mount

封装 TQFP

外形尺寸

封装 TQFP

其他

产品生命周期 Obsolete

符合标准

RoHS标准 RoHS Compliant

海关信息

香港进出口证 NLR

数据手册

在线购买VSC7123RD
型号: VSC7123RD
制造商: Vitesse
描述:ETHERNET TRANSCEIVER, 64Pin Plastic QFP
替代型号VSC7123RD
型号/品牌 代替类型 替代型号对比

VSC7123RD

Vitesse

当前型号

当前型号

HDMP-1636A

惠普

功能相似

VSC7123RD和HDMP-1636A的区别

PT16

惠普

功能相似

VSC7123RD和PT16的区别
