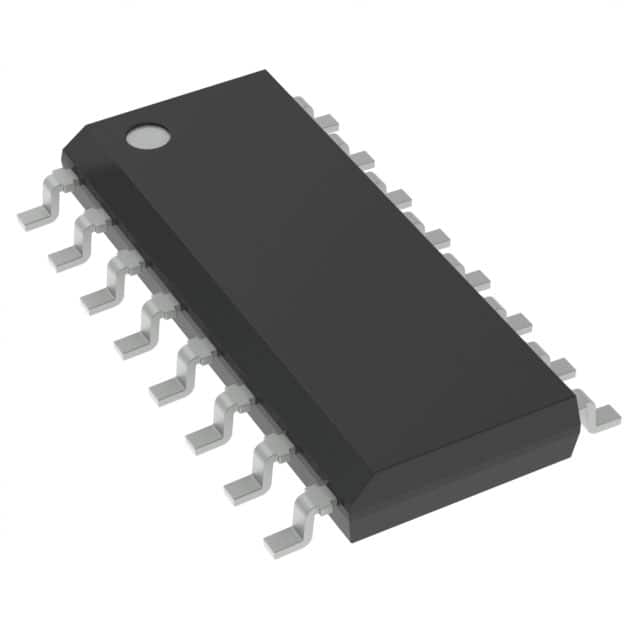

电机驱动器/控制器, H桥, 1输出, 4 V至28 V电源, 15 A输出, NSOIC-16
The device is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches.
Both switches are designed using STMicroelectronics’ well known and proven proprietary VIPower®M0-7 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The three dies are assembled in SO-16N package on electrically isolated lead-frames.
Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level. The input signals INAand INBcan directly interface the microcontroller to select the motor direction and the brake condition. A SEL0 pin is available to address the information available on the CS to the microcontroller. The CS pin allows to monitor the motor current by delivering a current proportional to the motor current value. The PWM, up to 20 kHz, allows to control the speed of the motor in all possible conditions. In all cases, a low level state on the PWM pin turns off both the LSAand LSBswitches.
**Key Features**
- .
- AEC-Q100 qualified
- .
- Output current: 15 A
- .
- 3 V CMOS-compatible inputs
- .
- Undervoltage shutdown
- .
- Overvoltage clamp
- .
- Thermal shutdown
- .
- Cross-conduction protection
- .
- Current and power limitation
- .
- Very low standby power consumption
- .
- Protection against loss of ground and loss of VCC
- .
- PWM operation up to 20 kHz
- .
- CS diagnostic functions
- .
- Analog motor current feedback
- .
- Output short to ground detection
- .
- Thermal shutdown indication
- .
- OFF-state open-load detection
- .
- Output short to VCC detection
- .
- Output protected against short to ground and short to VCC
- .
- Standby Mode
- .
- Half Bridge Operation
- .
- Package: ECOPACK®
