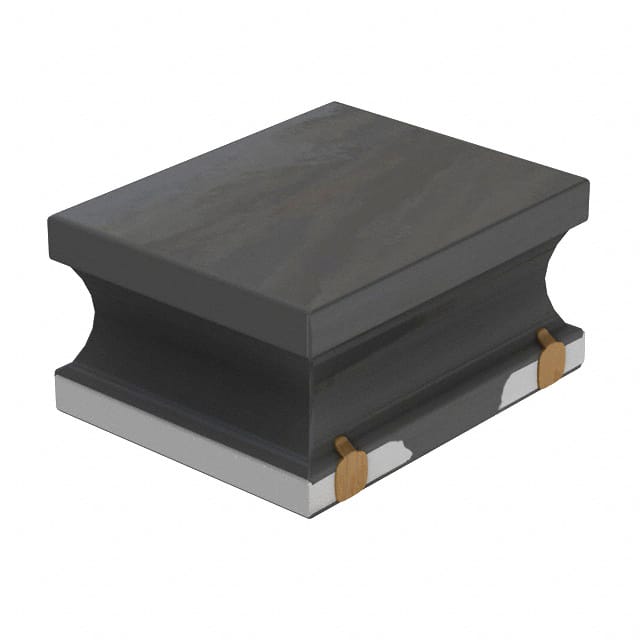

VLS201612CX-3R3M-1

功率电感SMD, 3.3 µH, 1.61 A, 绕线, 1.16 A, VLS-CX系列, 2mm x 1.6mm x 1.2mm

The VLS201612CX series from are wirewound high magnetic shield type inductors. These inductors are manufactured with ferrite magnetic material which is typically used in power circuits.

.

Dimension of 2mm L x 1.6mm W x 1.2mm H

.

Inductance value range from 1µH to 22µH

.

Rated current available in two range of values 450mA to 2.08A Idc1 and 570mA to 2.54A Idc2

.

DCR value range from 0.057ohm to 1.32ohm

.

±20% inductive tolerance

.

Operating temperature range from -40°C to +105°C

.

Compatible with high density mounting

.

Larger current and lower Rdc were achieved by optimizing the ferrite core figure

.

17mg individual weight

.

Reflow soldering method
