WSR200000ZEA9

VISHAY  WSR200000ZEA9  电流感应电阻器, 表面安装, AEC-Q200 WSR系列, 0 ohm, 2 W, 4527 [11470公制]

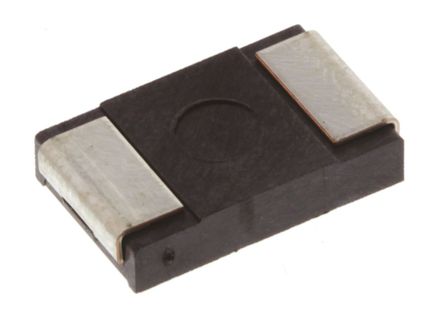

The Vishay WSR2 series are surface mount, power metal strip resistors. The WSR2 series have a low resistance values ranging from 1mohm to 1ohm and power rating of 2W. These resistors use solid metal nickel chrome or manganese copper alloy as a resistive element with low TCR. The WSR2 series are ideal for all types of current sensing, voltage division and pulse applications.

.

Automotive grade AEC-Q200 qualified

.

Compact 4527 package size

.

±0.5% and ±1% tolerance

.

Moulded high temperature encapsulation

.

Very low inductance 0.5nH to 5nH

.

Excellent frequency response to 50MHz

.

Low thermal EMF < 3µV/°C

.

±750ppm/°C, ±600ppm/°C, ±450ppm/°C, ±300ppm/°C, ±110ppm/°C, ±75ppm/°C TCR values available

.

Operating temperature range -65°C to +275°C

.

Resistant to thermal and mechanical shock, extreme temperatures, humidity and vibration
