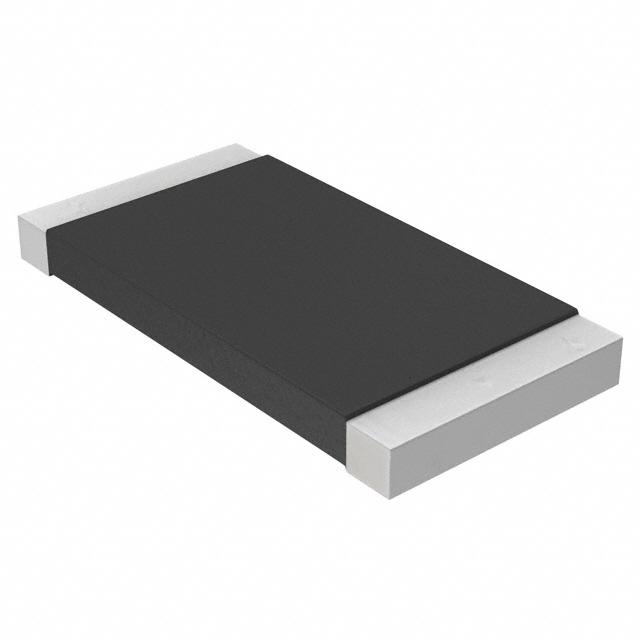

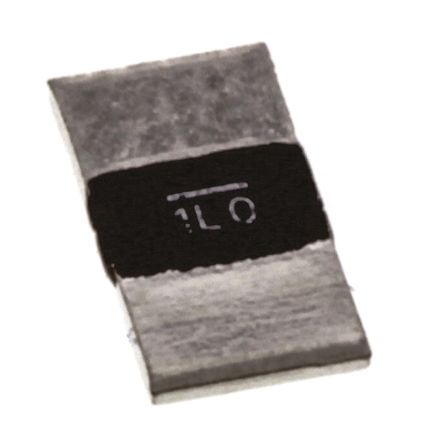

VISHAY WSL25121L000FEA 电流感应电阻器, 表面安装, AEC-Q200 WSL系列, 0.001 ohm, 1 W, ± 1%, 2512 [6432公制]
The WSL series Power Metal Strip® surface-mount welded construction Current Sense Resistor is ideal for all types of current sensing, voltage division and pulse applications.
额定电压DC 30.0 mV
容差 ±1 %
额定功率 1 W
电阻 0.001 Ω
阻值偏差 ±1 %
工作温度Max 170 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装公制 2512
封装 2512
长度 6.35 mm
宽度 3.18 mm
高度 0.635 mm
封装公制 2512
封装 2512
工作温度 -65℃ ~ 170℃
温度系数 ±275 ppm/℃
包装方式 Cut Tape CT
制造应用 Sensing & Instrumentation, 车用, Power Management, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
WSL25121L000FEA Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
WSL25121L000FEK 威世 | 完全替代 | WSL25121L000FEA和WSL25121L000FEK的区别 |
CRF2512-FV-R001ELF 伯恩斯 | 功能相似 | WSL25121L000FEA和CRF2512-FV-R001ELF的区别 |
