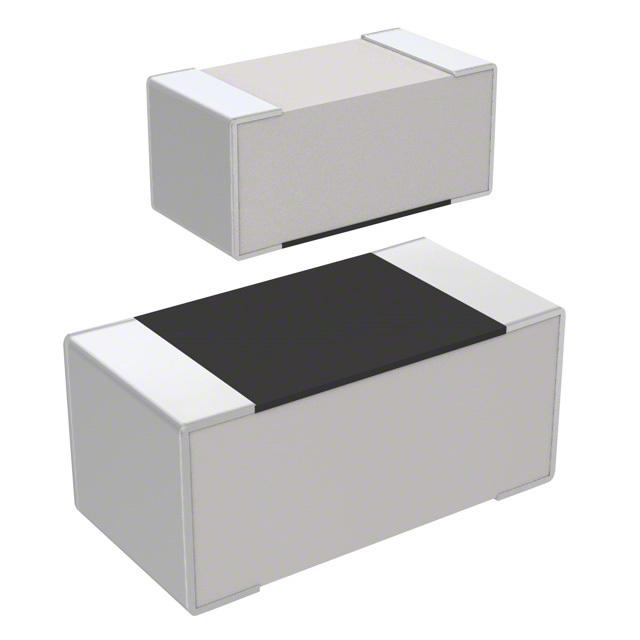

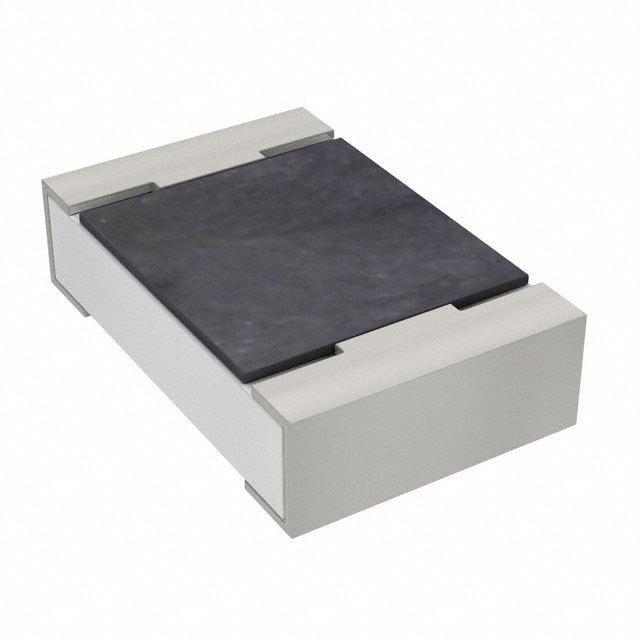

WALSIN WF12P1003FTL 片式电阻器, 表面贴装, WF12P Series, 100 kohm, 200 V, 1206 [3216公制], 500 mW, ± 1%
The WF12P series resistors from Walsin are thick film, high power chip resistors. These resistors are constructed in a high grade ceramic body aluminium oxide.
- .
- Resistance values ranges from 1ohm to 1Mohm
- .
- EIA 1206 case size
- .
- TCR value is ±100ppm/°C
- .
- Available in ±1% and ±5% tolerance
- .
- Operating temperature range of -55°C to 155°C
- .
- Jumpers are also available
- .
- High reliability and stability
- .
- Reduced size of final equipment
- .
- High power rating and compact size
- .
- Continuous working voltage is 200V and rated power is 500mW
额定电压DC 200 V
额定功率 500 mW
产品系列 WF
电阻 100 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 5000
制造应用 工业, 便携式器材, Portable Devices, 电源管理, Consumer Electronics, 消费电子产品, Power Management, Industrial
RoHS标准
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
WF12P1003FTL Walsin Technology 台湾华科 | 当前型号 | 当前型号 |
CRCW1206100KFKEAHP 威世 | 类似代替 | WF12P1003FTL和CRCW1206100KFKEAHP的区别 |
MCWF12P1003FTL Multicomp | 类似代替 | WF12P1003FTL和MCWF12P1003FTL的区别 |
MCHP06W2F1003T5E Multicomp | 功能相似 | WF12P1003FTL和MCHP06W2F1003T5E的区别 |
