W3A41A101KAT2A

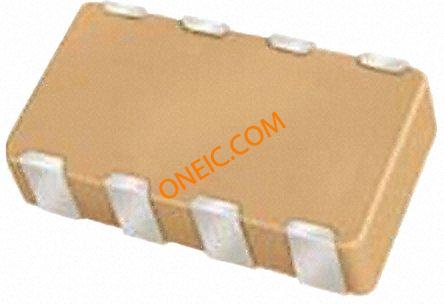

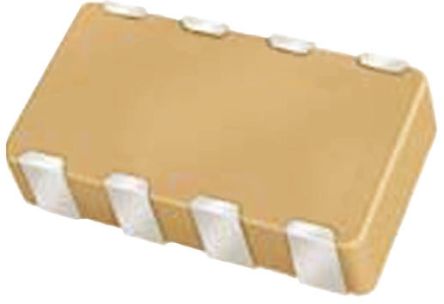

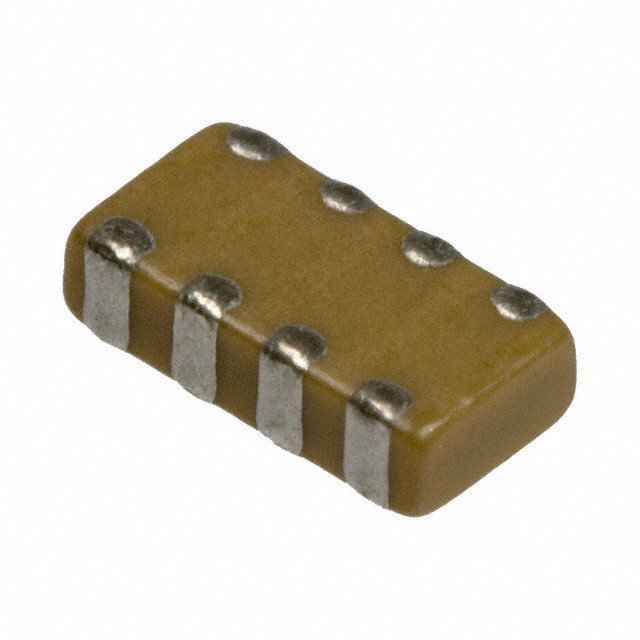

AVX  W3A41A101KAT2A  电容阵列, 100 pF, ± 10%, 4元件, 100 V, 0612 [1632公制], SMD

Surface Mount 0612, W3A Series

一个阵列上两个或四个值相同的器

所需板空间少于等价分立电容器的 50%

可节省放置成本和基板空间

Technical specification

---

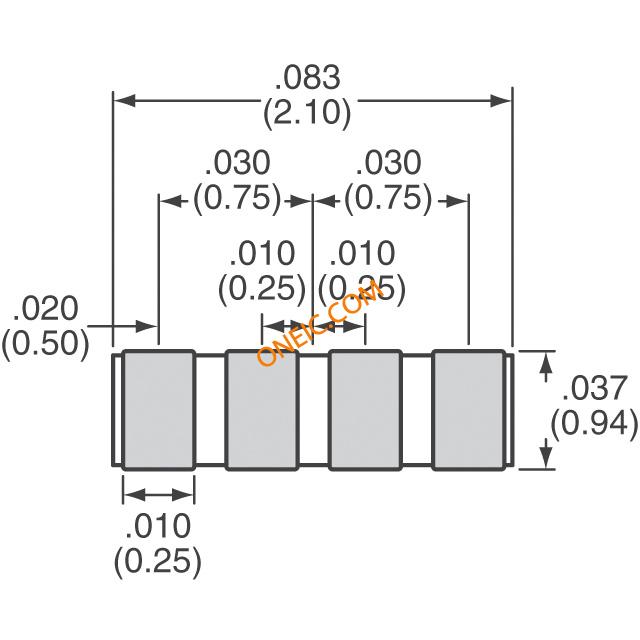

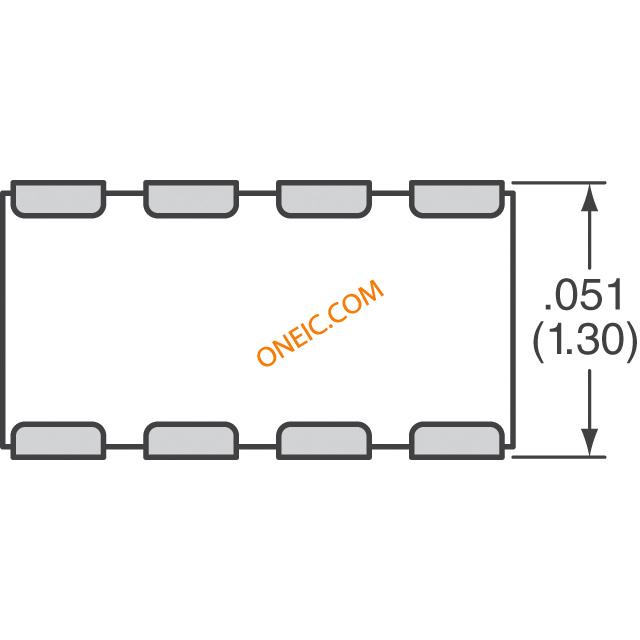

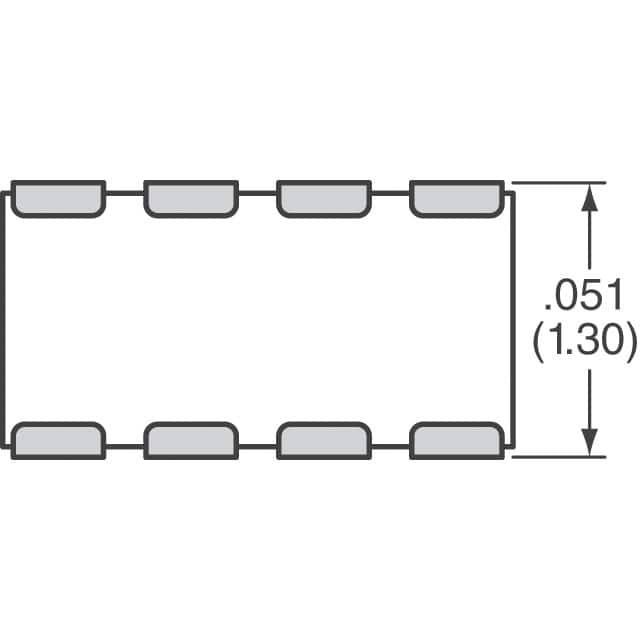

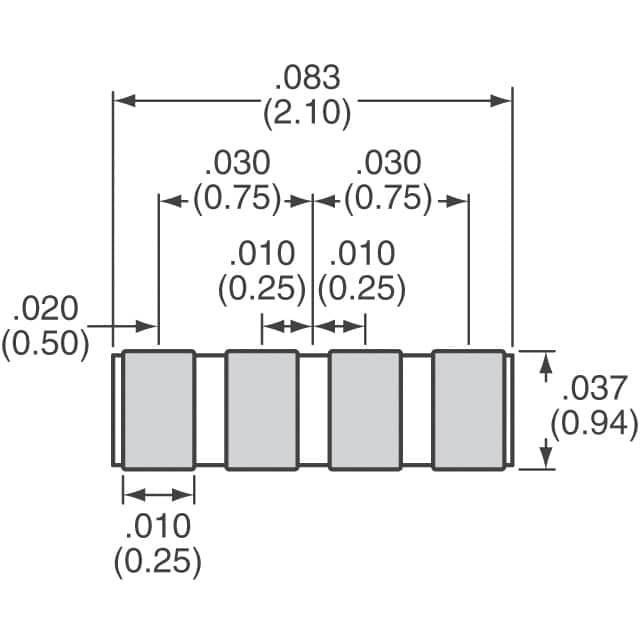

Dimensions L x W x H mm | Operating Temperature °C

3.2 x 1.6 x 1.35 | -55 to +125

欧时:
### Surface Mount 0612, W3A SeriesTwo or four capacitors of the same value on one array Less than 50% board space of equivalent discrete capacitors Saves placement cost and substrate space Technical specification --- Dimensions L x W x H mm | Operating Temperature °C 3.2 x 1.6 x 1.35 | -55 to +125 ### 网络和馈通 — 阵列### 网络和馈通

立创商城:
100pF ±10% 100V

e络盟:
电容阵列, 100 pF, 0612 [1632公制], 100 V, 4元件, SMD

艾睿:
Thanks to AVX and their W3A41A101KAT2A capacitor bank, you&s;ll be able to save space on your printed circuit if it originally contains multiple capacitors. It can withstand a voltage of 100 VDC. This high voltage capacitor bank has a maximum operating temperature of 125 °C. It has 8 terminals. Its capacitance value is 100pF. This product is 1.6 mm long, 1.35Max mm tall and 3.2 mm deep. It has a tolerance of 10%. This product&s;s terminal pitch is 0.76 mm.

Allied Electronics:
100pF +/-10% 100V dc W3A Series 4-Way C0G Dielectric Cap Array, SMT 0612 package

安富利:
Cap Ceramic Array 100pF 100V C0G 10% 0612 SMD 4 Capacitor 125°C Paper T/R/Embossed T/R

Verical:
Cap Ceramic Array 100pF 100V C0G 10% 0612 Pad SMD 4 Capacitor 125C T/R

Newark:
# AVX  W3A41A101KAT2A  Capacitor Array, 100 pF, 10%, 4, 100 V, 0612 [1632 Metric], SMD
