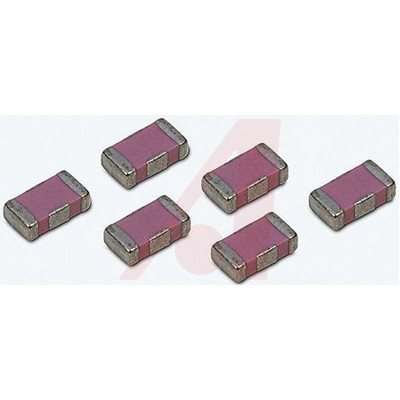

W3H15C2238AT1A

AVX  W3H15C2238AT1A  多层陶瓷电容器, 表面贴装, W3H系列, 0.022 µF, +50%, -20%, X7R, 50 V, 0612 [1632 公制]

The W3H series high current Feed-through Capacitor designed as a broadband EMI filter that is specially designed to have high current handling capability. These SMT FEEDTHROUGH filters offer an optimized frequency response with high attenuation across a wide RF spectrum due to optimized parallel and series inductances. These feed-through filters can actually replace discrete L/C filter networks. It offers low parallel inductance provides significant noise reduction in circuits with operating frequencies up to 5GHz. It is suitable for high current power Vcc lines, PA decoupling, DC-DC converters, regulators and power supervisory circuits.

.

Broad frequency response with high attenuation

.

Small size

.

Up to 5A high rated current

.

Plated tin over nickel barrier
