W3A4YC104MAT2A

AVX  W3A4YC104MAT2A  电容阵列, IPC, 0.1 µF, ± 20%, 4元件, 16 V, 0612 [1632公制], SMD

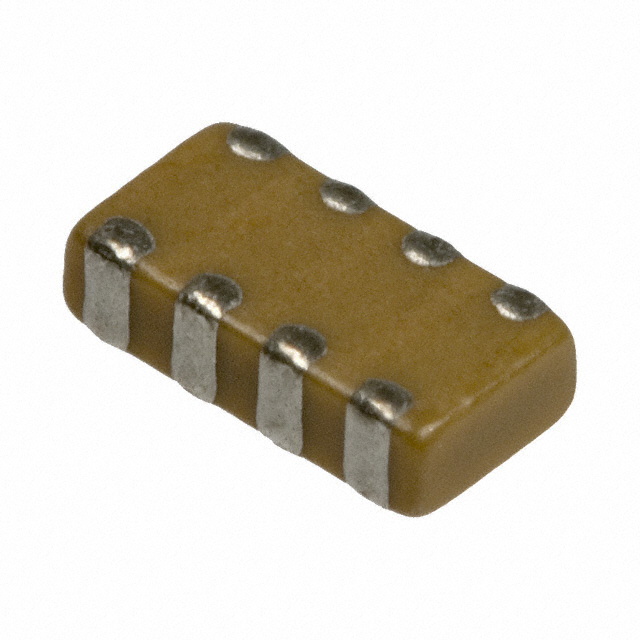

The is a Capacitor Array with X7R dielectric. It is suitable for mobile and cordless phones, digital set top boxes and RF modems.

.

Ni and Sn plated termination

.

4 Number of caps

立创商城:
100nF ±20% 16V

e络盟:
电容阵列, IPC, 0.1 µF, 0612 [1632公制], 16 V, 4元件, SMD

艾睿:
Have the convenience of a group of capacitors with this W3A4YC104MAT2A capacitor banks made from AVX. It can withstand a voltage of 16 VDC. This high voltage capacitor bank has a maximum operating temperature of 125 °C. It has 8 terminals. Its capacitance value is 0.1uF. It has a tolerance of 20%. This product&s;s terminal pitch is 0.76 mm. This product is 1.6 mm long, 1.35Max mm tall and 3.2 mm deep.

安富利:
Cap Ceramic Array 0.1uF 16V X7R 20% 0612 SMD 4 Capacitor 125°C Paper T/R/Embossed T/R

Chip1Stop:
Cap Ceramic Array 0.1uF 16V X7R 20% 0612 Pad SMD 4 Capacitor 125℃ T/R

Verical:
Cap Ceramic Array 0.1uF 16V X7R 20% 0612 SMD 4 Capacitor 125C Paper T/R/Embossed T/R

Newark:
# AVX  W3A4YC104MAT2A  Capacitor Array, IPC, 0.1 - F, - 20%, 4, 16 V, 0612 [1632 Metric], SMD

Win Source:
0.1μF Isolated Capacitor 4 Array 16V X7R 0612 1632 Metric 0.126" L x 0.063" W 3.20mm x 1.60mm
