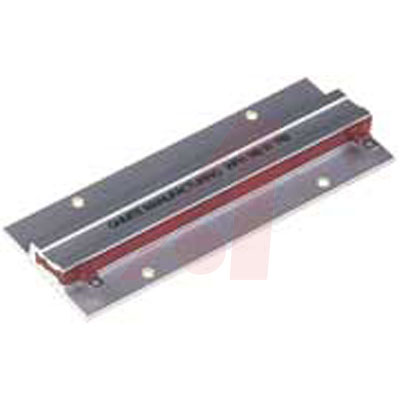

Res Wirewound 2.5KΩ 5% 230W 50ppm/℃ to 150ppm/℃ Aluminum Housed Solder Lug Flange Mount
±5% 230W 绕线 底座安装器
立创商城:
2.5kΩ ±5% 230W
Allied Electronics:
AL HOUSED 230W 2500 OHMS 5%
Verical:
Res Wirewound 2.5K Ohm 5% 230W 50ppm/C to 150ppm/C Aluminum Housed Solder Lug Flange Mount
MASTER:
Res Wirewound 2.5K Ohm 5% 230W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
Online Components:
Res Wirewound 2.5K Ohm 5% 230W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
Electro Sonic:
Res Wirewound 2.5K Ohm 5% 230W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
额定电压DC 1.20 kV
容差 ±5 %
额定功率 230 W
电阻 2.5 KΩ
阻值偏差 ±5 %
安装方式 Chassis
封装 Radial, Rectangular Case
长度 210 mm
宽度 51.0 mm
高度 12.6 mm
封装 Radial, Rectangular Case
工作温度 -40℃ ~ 220℃
温度系数 50ppm/℃ ~ 150ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533290000
