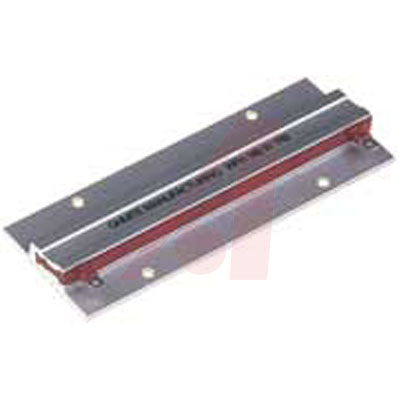

Res Wirewound 2.7KΩ 5% 90W 50ppm/℃ to 150ppm/℃ Aluminum Housed Solder Lug Flange Mount
Res Wirewound 2.7K Ohm 5% 90W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
立创商城:
2.7kΩ ±5% 90W
得捷:
RES CHAS MNT 2.7K OHM 5% 90W
艾睿:
Res Wirewound 2.7K Ohm 5% 90W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
Allied Electronics:
RES CHAS MNT 2.7K OHM 5% 90W
Chip1Stop:
Res Wirewound 2.7K Ohm 5% 90W 50ppm/ C to 150ppm/ C Aluminum Housed Solder Lug Flange Mount
Verical:
Res Wirewound 2.7K Ohm 5% 90W 50ppm/C to 150ppm/C Aluminum Housed Solder Lug Flange Mount
MASTER:
Res Wirewound 2.7K Ohm 5% 90W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
Online Components:
Res Wirewound 2.7K Ohm 5% 90W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
Electro Sonic:
Res Wirewound 2.7K Ohm 5% 90W 50ppm/°C to 150ppm/°C Aluminum Housed Solder Lug Flange Mount
额定电压DC 1.20 kV
容差 ±5 %
额定功率 90 W
电阻 2.7 kΩ
阻值偏差 ±5 %
额定电压 1.2 kV
安装方式 Chassis
封装 Radial, Rectangular Case
长度 70 mm
宽度 51 mm
高度 12.6 mm
封装 Radial, Rectangular Case
工作温度 -40℃ ~ 220℃
温度系数 50ppm/℃ ~ 150ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533290000
