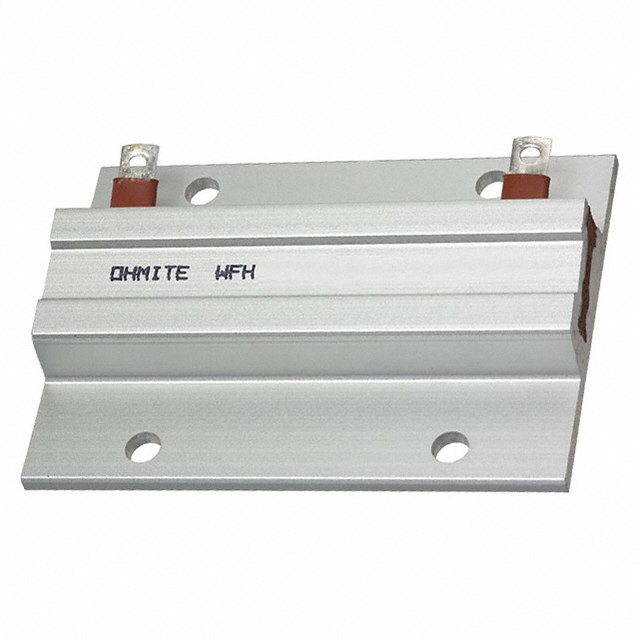

Res Wirewound 75Ω 5% 330W 50ppm/℃ to 150ppm/℃ Aluminum Housed Solder Lug Flange Mount
** WFH Series**
Ohmite WFH series flat core winding technology offers wirewound heatsinkable resistors with a very low profile, and superior thermal transfer characteristics when compared to conventional aluminum housed wirewound resistors. Close mounting of heat sensitive components is possible due to only a slight rise of the temperature on the aluminum profile. No heat sink compound is required because of large mounting surface.
额定电压DC 1.20 kV
容差 ±5 %
额定功率 330 W
电阻 75 Ω
阻值偏差 ±5 %
额定电压 1.2 kV
安装方式 Chassis
封装 Radial, Rectangular Case
长度 280 mm
宽度 51 mm
高度 12.6 mm
封装 Radial, Rectangular Case
工作温度 0℃ ~ 300℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533290000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
WFH330L75RJE Ohmite | 当前型号 | 当前型号 |
WFH330L75RJ Ohmite | 完全替代 | WFH330L75RJE和WFH330L75RJ的区别 |
