W2S130-AA25-01概述

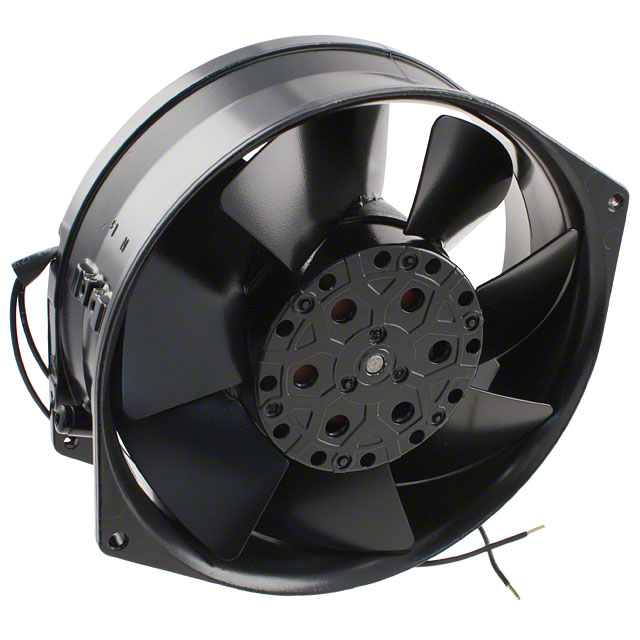

EBM PAPST  W2S130-AA25-01  轴流风扇, 管轴式, 圆形, 墙圈, 滚珠, W2S130系列, 115 VAC, 172 mm, 55 mm, 191 cu.ft/min, 325 m³/h

The is a 115VAC Axial Fan with wall ring, ball bearing, wire leaded power connection and 2-pole shaded pole motor. Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor. External rotor shaded pole motor, counter-clockwise direction of rotation seen on rotor air exhaust over struts air flow direction with S1 operation mode.

.
38W Rated power
.
80°C Maximum permissible ambient motor temperature
.
Protection class-I
.
IP20 Protection rating
W2S130-AA25-01中文资料参数规格
技术参数

额定电流 0.470 A

额定功率 38 W

功耗 38 W

工作温度Max 70 ℃

额定电压 115 VAC

电源电压 115 VAC

外形尺寸

宽度 55 mm

高度 55 mm

物理参数

重量 1.1 kg

工作温度 -25℃ ~ 60℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买W2S130-AA25-01
型号: W2S130-AA25-01
制造商: Papst
描述:EBM PAPST  W2S130-AA25-01  轴流风扇, 管轴式, 圆形, 墙圈, 滚珠, W2S130系列, 115 VAC, 172 mm, 55 mm, 191 cu.ft/min, 325 m³/h
