OHMITE WV-T264-101E 散热器, 12°C/W, 铝制, TO-264

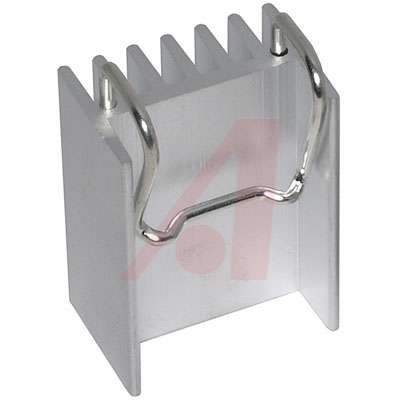

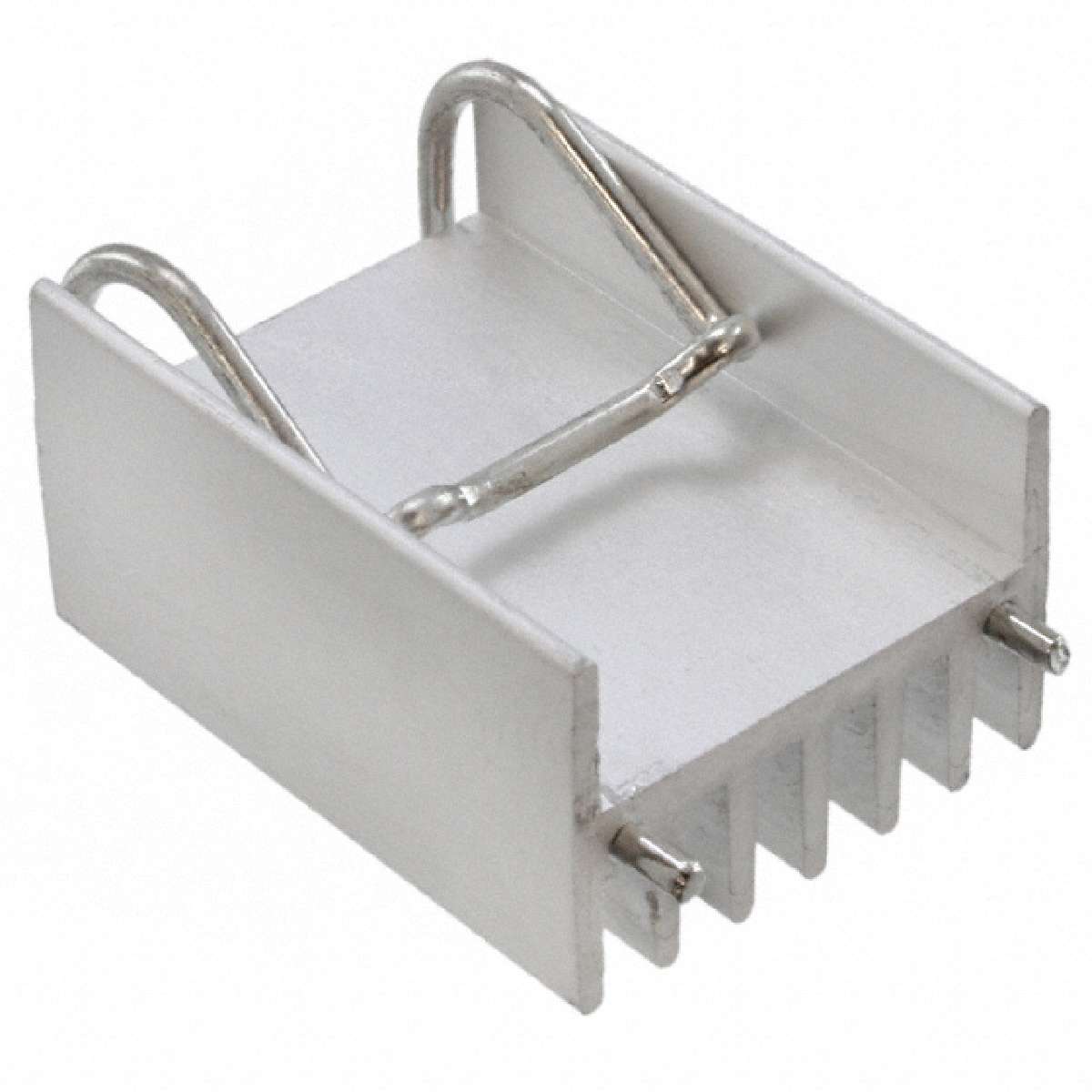

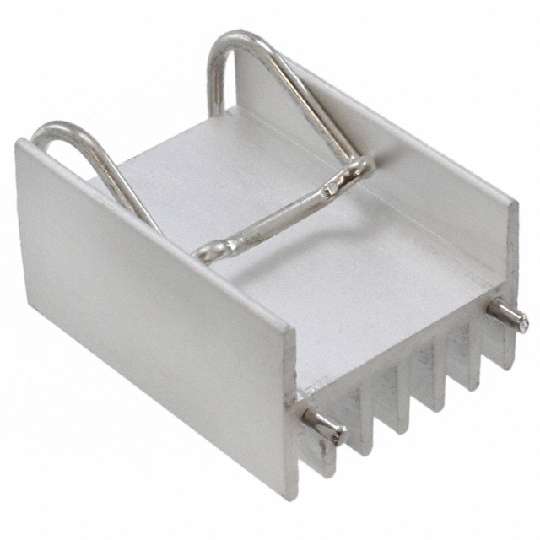

The unique design patent pending of the W Series heat sinks combines a tin plated, solderable, integral spring clip with an extruded aluminum heat sink body for an all-in-one solution to through-hole mounting of TO-220, TO-247, and TO-264 packages. These self-aligning heat sinks feature solderable feet and an integrated clip with 13.2 lbf of force on the center of the device to enhance thermal performance.
Allied Electronics:
Heatsink; TO-264; Auto Clip; No Finish; Degreased
Verical:
Heat Sink Passive TO-264 Vertical Thru-Hole 12C/W
Newark:
# OHMITE WV-T264-101E Heat Sink, Square, PCB, TO-264, 12 °C/W, 32 mm, 16 mm, 23.4 mm
MASTER:
Heat Sink Passive TO-264 Vertical Thru-Hole 12°C/W
Online Components:
Heat Sink Passive TO-264 Vertical Thru-Hole 12°C/W
Electro Sonic:
Heat Sink Passive TO-264 Vertical Thru-Hole 12°C/W
