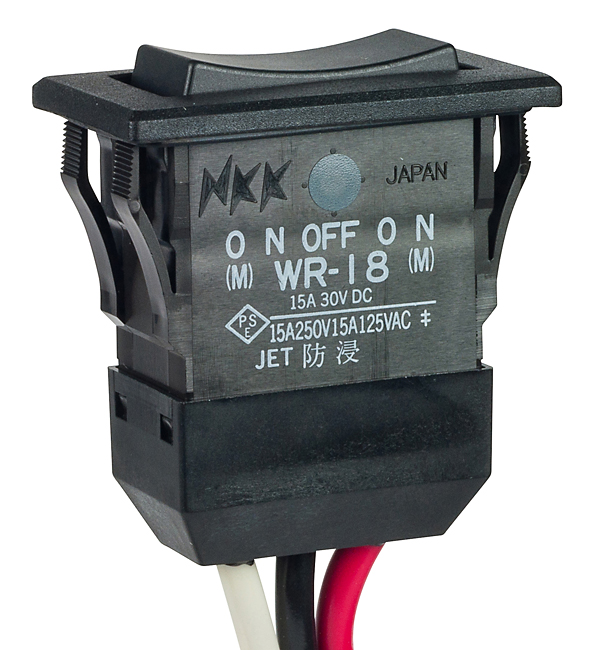

NKK SWITCHES WR18AL 船型开关, SPDT, 15A, 250VAC, 黑色
Environmentally sealed rockers offer added protection from the elecments. Specially designed contacts minimize bounce and can break light welds for improved reliability.
贸泽:
翘板开关 ONOFFON BLK 15A WIRE LEAD ENV SEALED
e络盟:
NKK SWITCHES WR18AL 船型开关, SPDT, 15A, 250VAC, 黑色
艾睿:
Safely turn on and off designs with this WR18AL rocker switch from NKK Switches. This device has a maximum current rating of 15 A @ 250VAC 30VDC. It has a SPDT configuration. This rocker switch panel has an operating temperature range of -25 °C to 85 °C. The WR18AL rocker switch panel has a wire lead termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 41 mm long, 47.3 mm tall and 24 mm deep.
Allied Electronics:
SWITCH, SPST SPDT ON OFF ON, BLACK
Chip1Stop:
Switch Rocker ON OFF ON SPDT Wire Lead Curved Rocker 15A 250VAC 30VDC 30000Cycles
Verical:
Switch Rocker ON OFF ON SPDT Wire Lead Curved Rocker 15A 250VAC 30VDC 30000Cycles
Newark:
# NKK SWITCHES WR18AL Rocker Switch, Non Illuminated, SPDT, On-Off-On, Black, Panel, 15 A
Powell:
STD SIZE ROCKER/ENVIRONMENTALLY SEALED
触点电镀 Silver
接触器类型 Rocker
额定电流 15 A
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 15A @250VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
接触电阻Max 30 mΩ
安装方式 Panel, Snap-In
长度 41 mm
宽度 24 mm
高度 47.3 mm
颜色 Black
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
