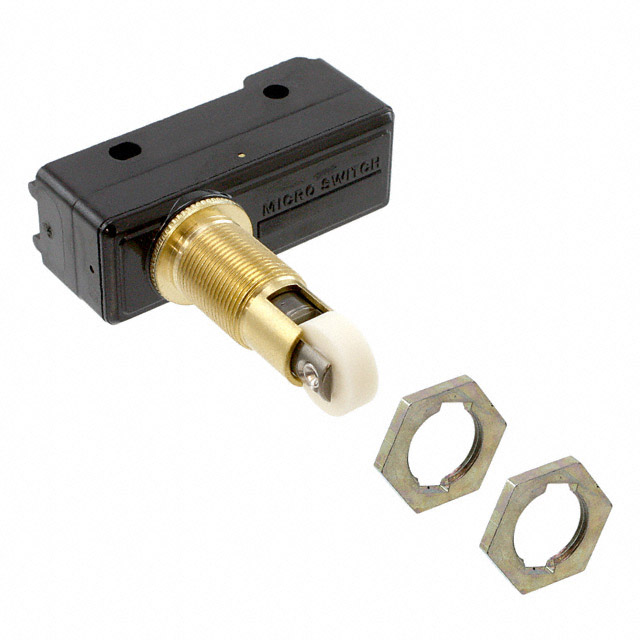

MICRO SWITCH™ Specialty Large Basic Switches: MT Magnetic Blow-Out Series, Single Pole Double Throw SPDT, 10A 125VAC/Vdc Non-Polarized, 46mm [1.82in] Stainless Steel Sintered Roller Lever Actuator, Removable Solder Termination, Mounting Holes will Accept Pins or Screws, UL, CSA
MICRO SWITCH™ Specialty Large Basic Switches: MT Magnetic Blow-Out Series, Single Pole Double Throw SPDT, 10 A 125 Vac/Vdc Non-Polarized, 46 mm [1.820 in] Stainless Steel Sintered Roller Lever Actuator, Removable Solder Termination, Mounting Holes will Accept Pins or Screws, UL, CSA
Product Highlights
Accepted world-wide standard "Large Basic" switch
Low operating force and differential travel
Long mechanical life up to 20,000,000 cycles at 95% survival
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Choice of actuation, termination and operating characteristics
Potential Applications:
Irrigation systems
Semi-trailer trucks
Timing devices
Office equipment
Test instruments
Medical/dental equipment
HVAC equipment
Manually operated devices
Valves
