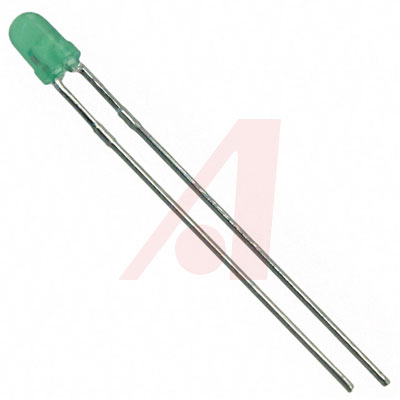

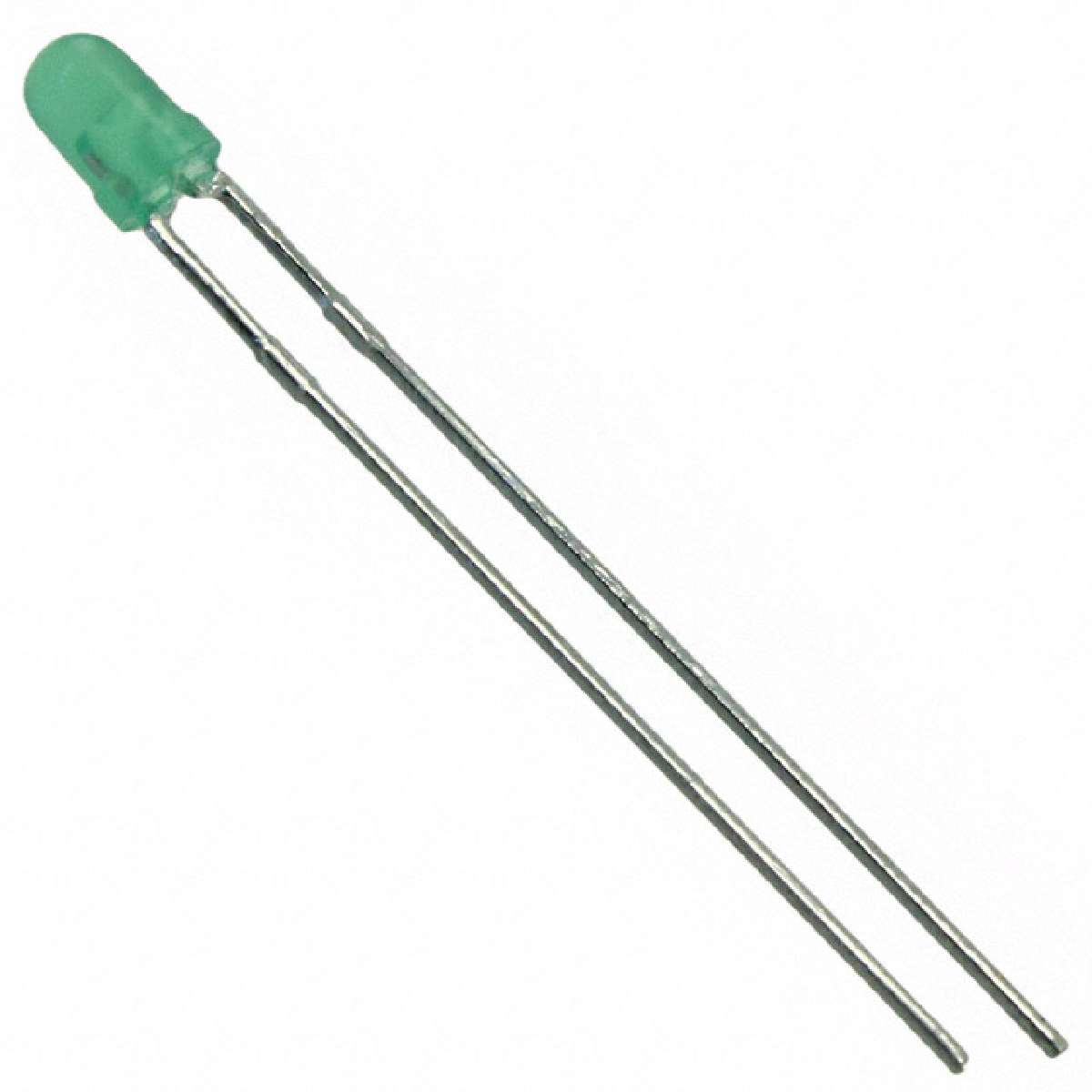

LED; Thru-Hole; Green; 3mm; PCB Mnt; T-1; 10mA; 30mcd; 568nm; 2.5V; Round
**Description**
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
**Features**
* Low power consumption.
* Popular T-1 diameter package.
* General purpose leads.
* Reliable and rugged.
* Long life - solid state reliability.
* Available on tape and reel.
* RoHS compliant.
得捷:
LED GREEN DIFFUSED T-1 T/H
艾睿:
LED Low-Power Uni-Color Green 565nm 2V 2-Pin T-1 Bag
Allied Electronics:
LED; Thru-Hole; Green; 3mm; PCB Mnt; T-1; 10 mA; 30 mcd; 568 nm; 2.5V; Round
Verical:
LED Uni-Color Green 565nm 2-Pin T-1 Bulk
正向电压 2.2 V
波长 568 nm
发光强度 30 mcd
视角 40°
峰值波长 565 nm
耗散功率 62.5 W
测试电流 10 mA
正向电流 10 mA
正向电压Max 2.5 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 62.5 mW
电源电压 2.5 V
安装方式 Through Hole
引脚数 2
封装 T-1
宽度 3 mm
高度 5.90 mm
封装 T-1
颜色 Green
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
WP710A10GD Kingbright | 当前型号 | 当前型号 |
WP7104GD Kingbright | 类似代替 | WP710A10GD和WP7104GD的区别 |
