1.8 mm 70° 12 mcd 漫射 电路板 LED 指示灯
* Color Matched Diffused Lenses
* 70° Viewing Angle 2 × Theta
* UL 94V-0 Flammability Rating
* 66 Nylon Housing Material
* Black Case Enhances Contrast
得捷:
LED IND 1.8MM RA 565NM GRN DIFF
艾睿:
LED Low-Power Bi-Level Uni-Color Green 565nm 2V 4-Pin Tube
Allied Electronics:

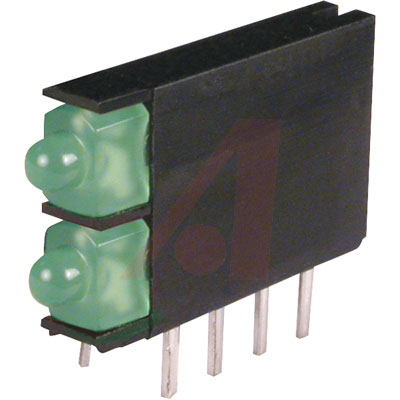

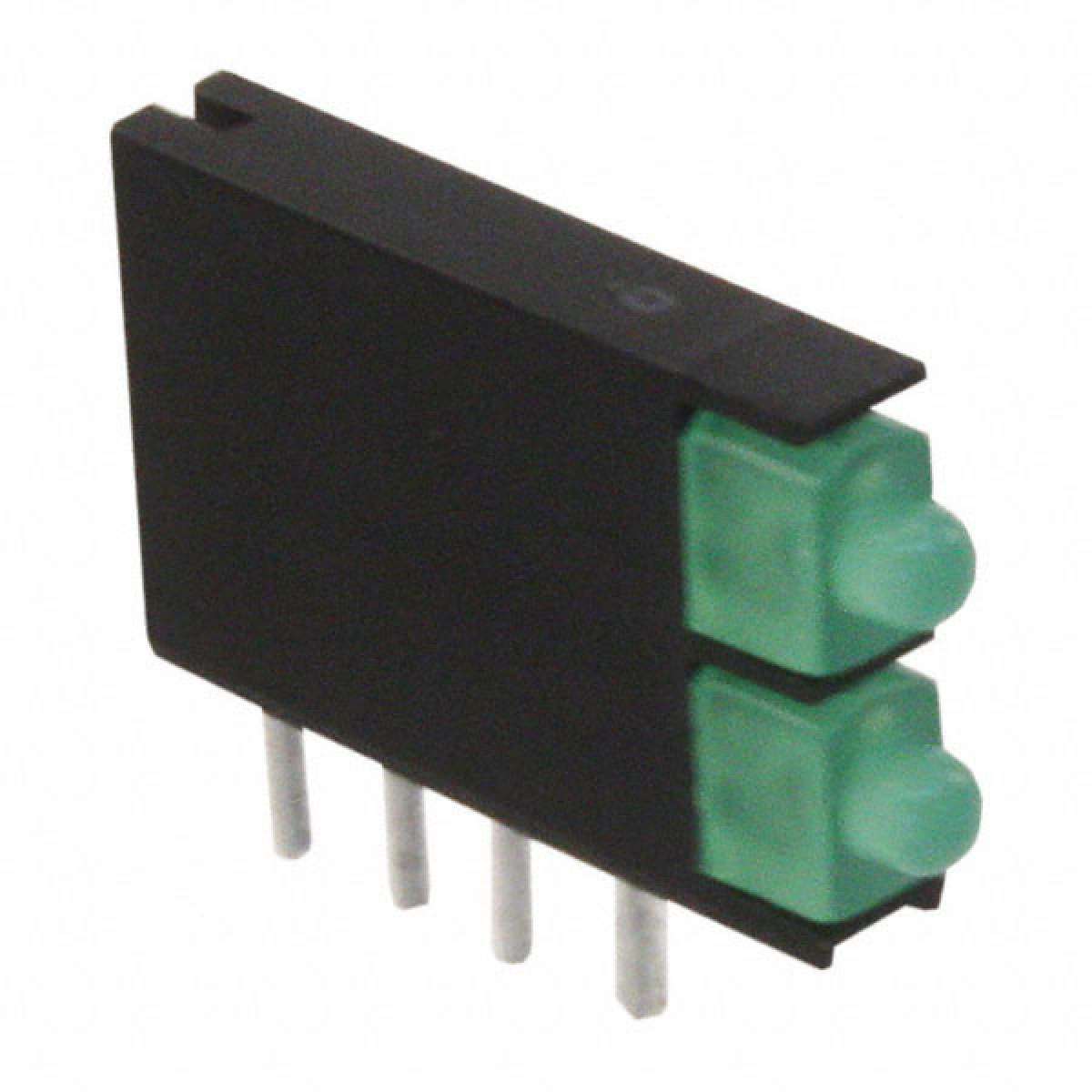

WP4060VH/2GD; Green Right Angle PCB LEDIndicator; 2 LEDs; Through Hole
Chip1Stop:
LED Bi-Level Uni-Color Green 565nm 4-Pin Tube
Verical:
LED Bi-Level Uni-Color Green 565nm 4-Pin Tube
正向电压 2.2 V
波长 568 nm
发光强度 10 mcd
视角 70°
峰值波长 565 nm
耗散功率 62.5 W
测试电流 10 mA
正向电流 30 mA
正向电压Max 2.4 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 62.5 mW
额定电压 2.2 V
安装方式 Through Hole
引脚数 4
高度 8.6 mm
颜色 Green
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
