WLFT 404 43 X 43

FISCHER ELEKTRONIK  WLFT 404 43 X 43  热绝缘, 导热铝箔, 粘合剂, 尼龙聚酰胺, PI聚酰亚胺薄膜, 0.37 W/m.K, 0.127 mm

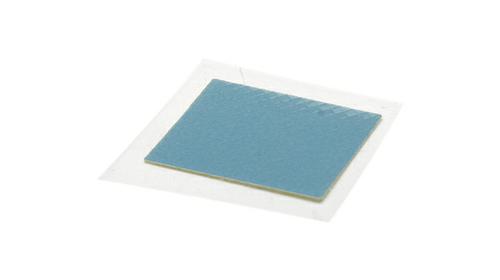

The is a 0.127mm Thermally Conductive Foil with adhesive on both the sides. It has good thermal characteristics and replaces mechanical fastenings.

.

Double-sided pressure sensitive acrylate glue layer

.

UL94V-0 Flammability rated

.

3.7°C cm²/W Specific thermal resistance

.

5KV/mm Snap-through stability

.

0.86MPa Holding force overlapping

.

-40 to +150°C Operating temperature
