WM-5616概述

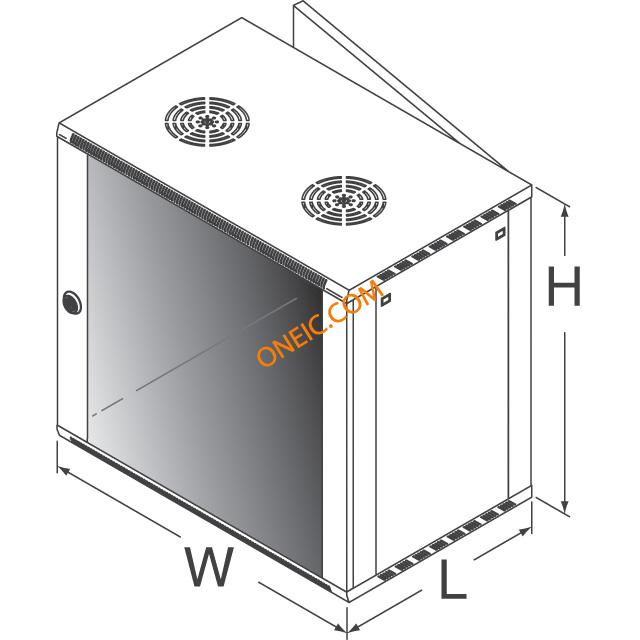

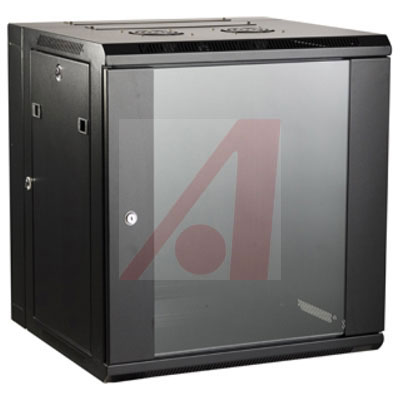

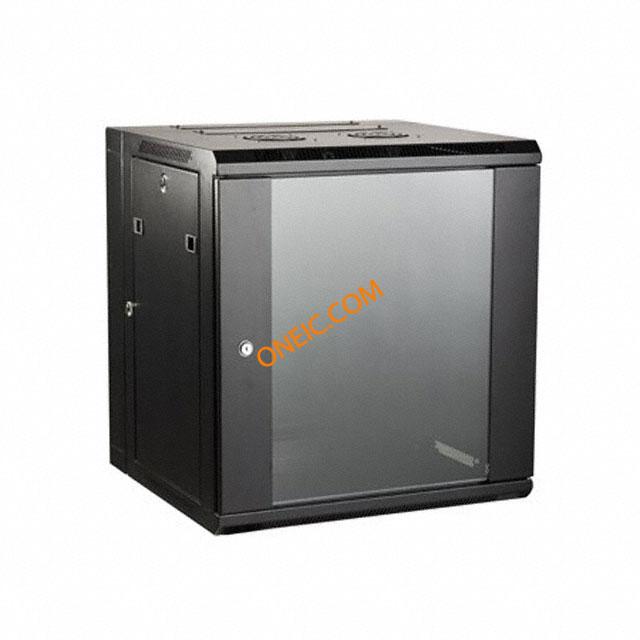

BUD INDUSTRIES WM-5616 19Inch Wall Cabinet, Emperor Series, 27U, Steel, Black, 1304mm, 600mm, 550mm

**Design Features**

* Sturdy and durable steel construction. Mounting rails - 18 ga., other parts 20 ga.

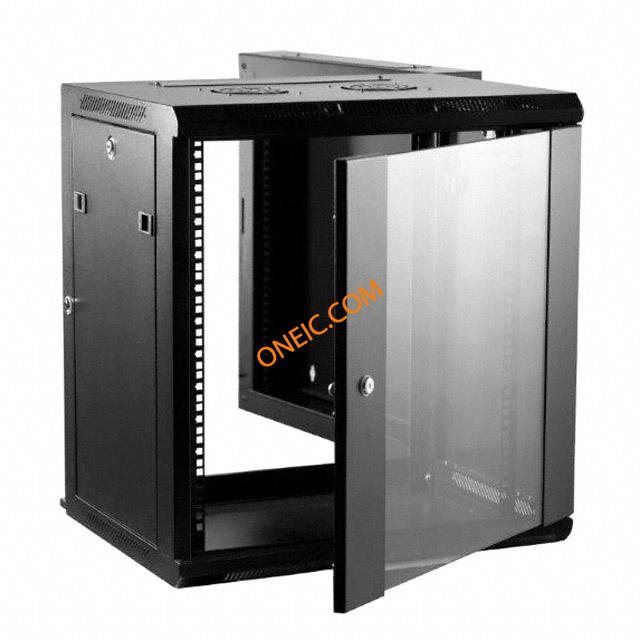

* Furnished completely assembled with tempered glass front door and removable sides.

* EIA 310 compliant for 19-1/2 mount equipment.

* Two pairs of fully adjustable panel mounting rails are included in the center section. One fixed pair of mounting rails is included in rear section.

* One ventilated shelf provided.

* Includes two fans installed in the top of the center section.

* Slots with readily removable covers are provided in the top and bottom of the rear section for easy cable installation.

* Sides are readily removable but come with key lock and with ventilation at top and bottom of cabinet.

* 4 mounting slots provided in rear unit for rapid wall mounting.

* Cabinet can be mounted to rear section hinged left or right.

* Front door can be hinged left or right.

* Other sizes and modifications are available upon request.

WM-5616中文资料参数规格
外形尺寸

长度 21.65 in

宽度 600 mm

高度 51.34 in

物理参数

颜色 Black

材质 Steel

重量 79.4 kg

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 9403200030

数据手册

在线购买WM-5616
型号: WM-5616
制造商: BUD
描述:BUD INDUSTRIES WM-5616 19Inch Wall Cabinet, Emperor Series, 27U, Steel, Black, 1304mm, 600mm, 550mm
