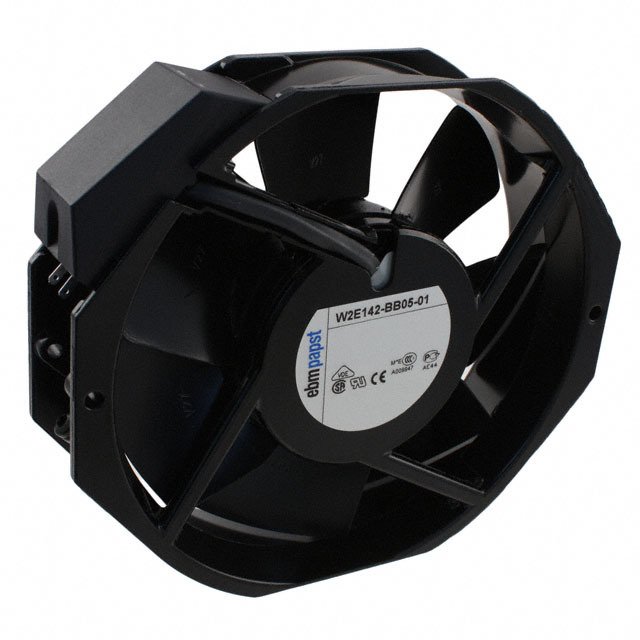

W2E142-BB05-01

EBM PAPST  W2E142-BB05-01  轴流风扇, 管轴式, 方形, 墙圈, 滚珠, W2E142系列, 115 VAC, 172 mm, 38 mm, 230 cu.ft/min, 6.44 m³/min

The is a 115VAC Axial Fan with a wall ring, ball bearing, terminal power connection and 1-phase 2-pole motor with operating capacitor. Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor. External rotor shaded pole motor, mounting from either face using two 4.3mm holes, electrical connections via 2 flat pin terminals of 2.8 x 0.5mm. Counter-clockwise direction of rotation seen on rotor, air exhaust over struts air flow direction.

.

24W Rated power

.

70°C Maximum permissible ambient motor temperature
