WDBR1-12RKT

WELWYN  WDBR1-12RKT  通孔电阻器, WDBR系列, 12 ohm, 1.5 kW, ± 10%, 2.5 kV

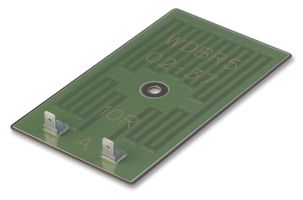

The Welwyn WDBR1 Series are ultra low profile thick film power resistors. These resistors are single fixing heat sink mountable and ideal for dynamic braking, inrush limit and snubber circuits. Resistor terminals available with options of solder pad, flying leads and push-on connectors. WDBR1 Series has low inductance and high isolation even after failsafe overload fusing.

.

Resistance value range from 12, 15, 20, 22, 25, 47, 50, 100 and 150 ohm

.

Rated power range from 500W to 7KW

.

±10% tolerance

.

Pulse power rating of 1.5kW

.

Power rating on heat sink is 180W

.

Operating temperature element of 365°C

.

Temperature coefficient is resistor TCR range from +500 to +600ppm/°C

.

Available in 10% tolerance
