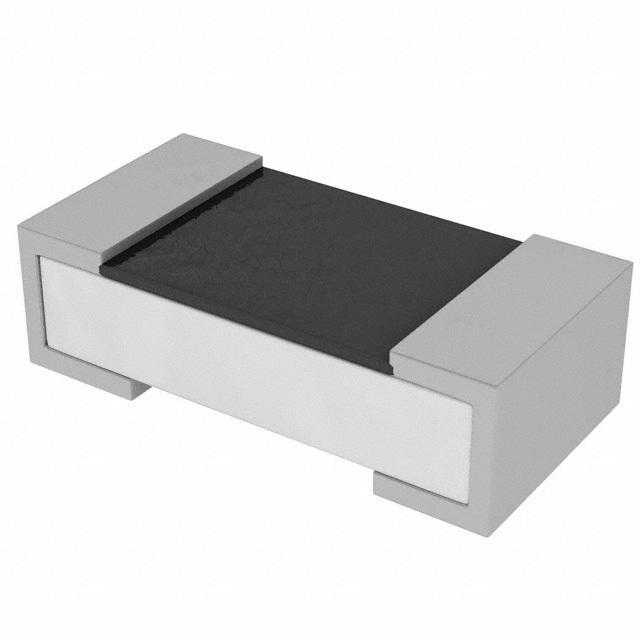

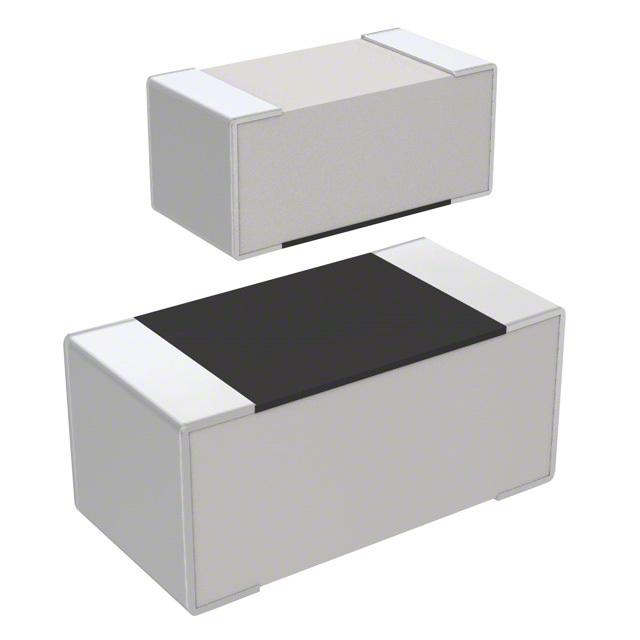

WW25QR005FTL

WALSIN  WW25QR005FTL  电流感应电阻器, 表面安装, WW25Q系列, 0.005 ohm, 1 W, ± 1%, 2512 [6432公制]

The WW25Q series from Walsin are metal low ohmic current sensing power chip resistors. These resistors are constructed in a high grade low resistive metal body.

.

Resistance values ranges from 1mohm to 15mohm

.

EIA 2512 case size

.

Available TCR values are ±75ppm/°C, ±100ppm/°C

.

Available in ±1%, ±5% tolerance

.

Operating temperature range of -55°C to 155°C

.

High power rating and compact size

.

High reliability and stability

.

Reduced size of final equipment

.

Maximum power dissipations of 1W

.

Maximum operation current of 44.7A
