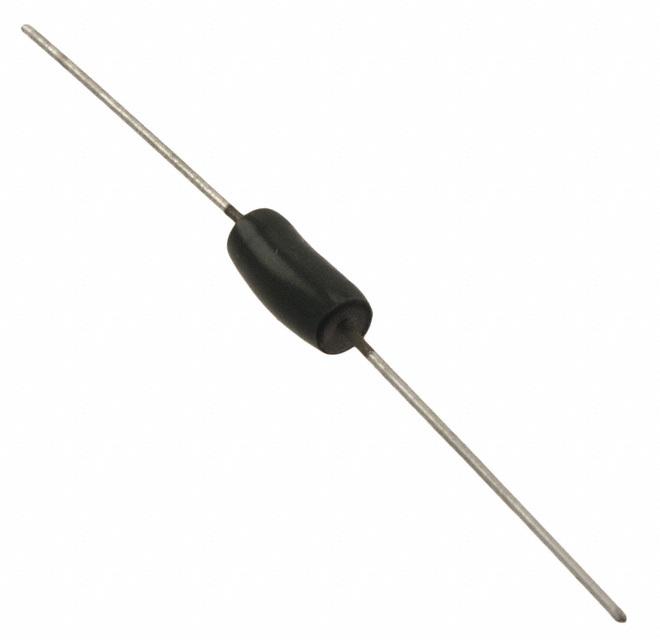

WELWYN W21-10RJI 通孔电阻器, W21系列, 10 ohm, 3 W, ± 5%, 100 V, 轴向引线
The is a 10R 3W through-hole mounting Wirewound Resistor with nickel-plated and solder-coated copper clad steel wire terminations. A high purity ceramic substrate is assembled with interference fit end caps to which are welded the termination wires. The resistive element is wound on the substrate and welded to the caps and the vitreous enamel protective coating is then applied. The resistor is legend marked with type reference, resistance value and tolerance and the values are marked in accordance with IEC 62. The vitreous enamelled wirewound resistor is suitable for harsh environments.
额定电压DC 100 V
容差 ±5 %
额定功率 3 W
电阻 10 Ω
阻值偏差 ±5 %
工作温度Max 200 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2
封装 轴向引线
长度 12.7 mm
脚长度 22.75 mm
封装 轴向引线
工作温度 -55℃ ~ 200℃
温度系数 ±75 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Box
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
W21-10RJI TT Electronics/Welwyn | 当前型号 | 当前型号 |
WA84-10RJI TT Electronics/Welwyn | 类似代替 | W21-10RJI和WA84-10RJI的区别 |
MCKNP03SJ0100A19 Multicomp | 类似代替 | W21-10RJI和MCKNP03SJ0100A19的区别 |
ER7410RJT 泰科 | 功能相似 | W21-10RJI和ER7410RJT的区别 |
