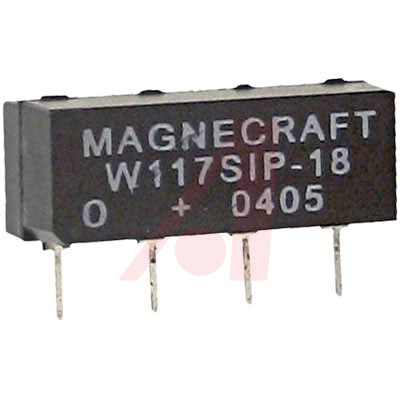

SCHNEIDER ELECTRIC/MAGNECRAFT W117SIP-18 簧片继电器, 5V
Rhodium Contact, -40 to + 85 °C Operating Temperature Range, Miniature Reed Relays
Hermetically sealed and resistance to atmospheric contaminations. Fast operate and release times and when operated within their rated contact loads, have very long life. Glass insulation material, thermo set plastic enclosure material.
e络盟:
簧片继电器, SPST-常闭, 200V, 0.5A, 通孔安装
Allied Electronics:
Relay; Reed; Power; SPST-NC; Cur-Rtg 0.5A; Ctrl-V 5DC; Vol-Rtg 200DC; PCB Mnt; Solder
MASTER:
Reed Relays 5VDC 500Ohm 0.5A SPST-NC 19x7.36x7.36mm THT Dry
Online Components:
Reed Relays 5VDC 500Ohm 0.5A SPST-NC 19x7.36x7.36mm THT Dry
Electro Sonic:
Reed Relays 5VDC 500Ohm 0.5A SPST-NC 19x7.36x7.36mm THT Dry
额定电压DC 5.00 V
额定电流 0.5 A
绝缘电阻 1 GΩ
额定功率 50.0 mW
触点类型 SPST-NC
触点额定电流 500 mA
线圈电压 5 VDC
线圈电流 10 mA
线圈功率DC 50.0 mW
线圈电阻 500 Ω
载流 500 mA
线圈电压DC 5 V
开关电流Max 500 mA
额定电压 200 VDC
安装方式 Through Hole
引脚数 4
封装 SIP
封装 SIP
重量 1 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 8536490055
