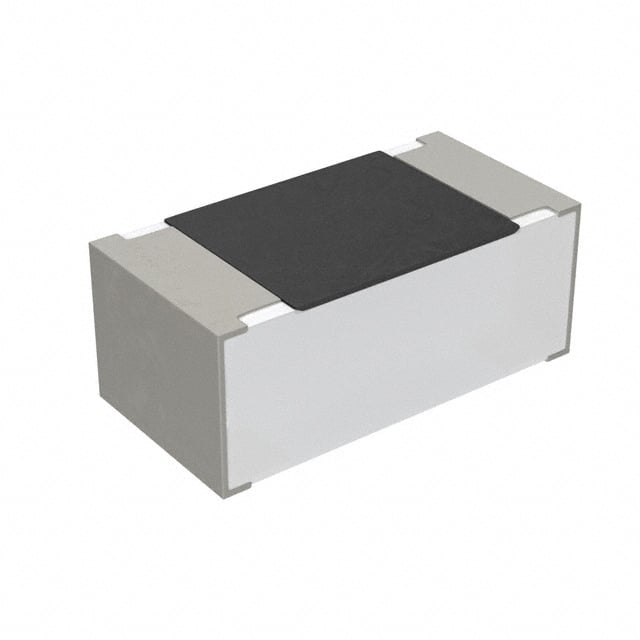

WALSIN WR04X2000FTL 片式电阻器, 表面贴装, WR04 Series, 200 ohm, 50 V, 0402 [1005公制], 62.5 mW, ± 1%
SMD器/芯片电阻器
立创商城:
200Ω ±1% 62.5mW
得捷:
RES 200 OHM 1% 1/16W 0402
艾睿:
The WR04X2000FTL fixed single surface-mount resistor from Walsin Technology Corporation makes it easy to add resistors to your circuit board. This product has a resistance value of 200 Ohm. This part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This device utilizes thick film technology. It has a tolerance of 1%.
Verical:
Res Thick Film 0402 200 Ohm 1% 0.063W1/16W ±100ppm/C Pad SMD T/R
Newark:
# WALSIN WR04X2000FTL Surface Mount Chip Resistor, WR04 Series, 200 ohm, 62.5 mW, 1%, 50 V, 0402 [1005 Metric]
额定电压DC 50.0 V
额定功率 62.5 mW
产品系列 WR
电阻 200 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
触点材质 Tin
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 工业, Industrial, 电源管理, 便携式器材, Consumer Electronics, Power Management, 消费电子产品, Portable Devices
RoHS标准
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
WR04X2000FTL Walsin Technology 台湾华科 | 当前型号 | 当前型号 |
MCWR04X2000FTL Multicomp | 类似代替 | WR04X2000FTL和MCWR04X2000FTL的区别 |
MCSR04X2000FTL Multicomp | 类似代替 | WR04X2000FTL和MCSR04X2000FTL的区别 |
RC0402FR-07200RL 国巨 | 功能相似 | WR04X2000FTL和RC0402FR-07200RL的区别 |
