W2S130-AA03-49

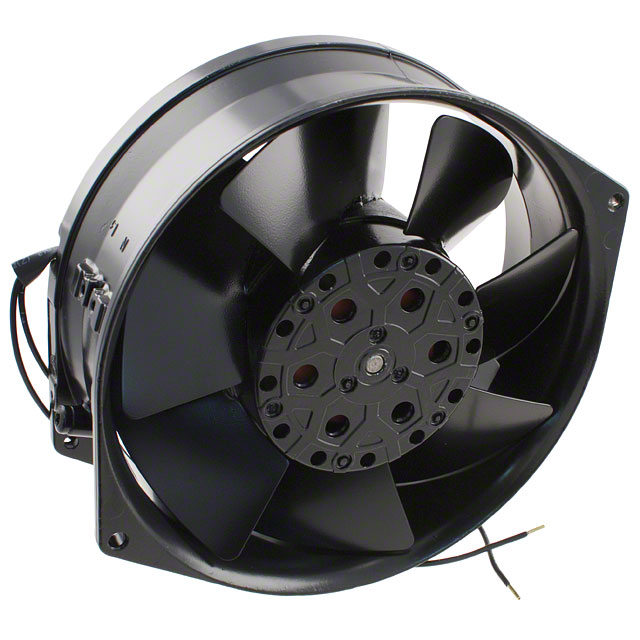

EBM PAPST  W2S130-AA03-49  轴流风扇, 管轴式, 圆形, 墙圈, 滚珠, W2S130系列, 230 VAC, 172 mm, 55 mm, 223.6 cu.ft/min, 6.26 m³/min

The is a 115/230VAC Axial Fan with wall ring, ball bearing, wire leaded power connection and 2-pole shaded pole motor. Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor. External rotor shaded pole motor, counter-clockwise direction of rotation seen on rotor air exhaust over struts air flow direction with S1 operation mode.

.

38W Rated power

.

70°C Maximum permissible ambient motor temperature

.

IP20 Protection rating
