WW12DR040FTL

WALSIN  WW12DR040FTL  电流感应电阻器, 表面安装, WW12D系列, 0.04 ohm, 1 W, ± 1%, 1206 [3216公制]

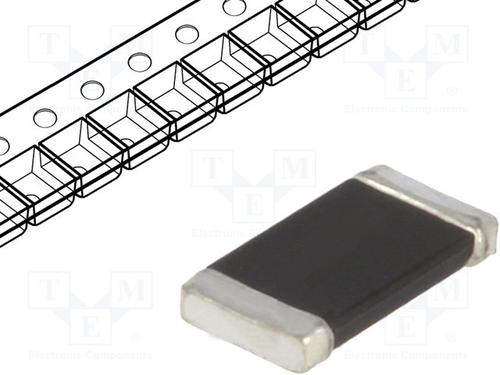

The WW12D series from Walsin are metal foil low ohmic current sensing chip resistors. These resistors are constructed in a high grade low resistive metal foil which adheres on top of ceramic substrate body.

.

Resistance values includes 20mohm, 25mohm, 30mohm, 40mohm and 50mohm

.

EIA 1206 case size

.

TCR value is ±70ppm/°C

.

Available in ±1%, ±5% tolerance

.

Operating temperature range of -55°C to 155°C

.

Ultra low and stable TCR performance

.

High reliability, stability and reduced size of final equipment

.

High power rating and compact size

.

Rated current is 14A

.

Rated power of 1W
