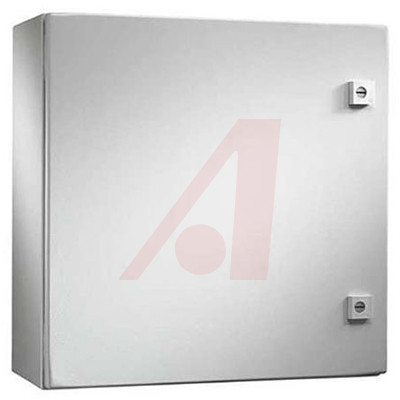

Enclosure; Steel; Hinged; 1/4 Turn Latch; Gray; 20x20x8 In; IP66; WM Series
Product Features
Configuration:
One-piece enclosure body
Left hand hinge
1/4 turn latch with slotted head insert
Zinc-plated mounting panel
Rear Wall Mounting holes
Foamed-in-place polyurethane gasket
Material:
Sheet steel
Finish:
Dipcoat-primed, powder-coated in textured RAL 7035 light gray
Ratings
IP 66
UL/cUL Type 1, 12, 3R, 4
Certifications and Approvals
UL Type 1, 3R, 4, 12
Allied Electronics:
Enclosure; Steel; Hinged; 1/4 Turn Latch; Gray; 20x20x8 In; IP66; WM Series
Newark:
# RITTAL WM202008NC WALL MOUNT ENCLOSURE 20X20X08 CARBON STEEL RAL7035
颜色 Gray
材质 Steel
Color Gray
Configuration Smooth Wall
Cover Locking Quarter-Turn Latch
Cover Mounting Hinged
Dimensions 20 x 20 x 8 In. 508 x 508 x 203 mm
Enclosure Mounting Wall Mount
IP Rating IP66
Material Steel
NEMA Rating None
Series WM Series
Size Medium
Size, Approximate Depth 8" 203mm
Size, Approximate Height 20" 508mm
Size, Approximate Width 20" 508mm
Special Features Internal Panel
Type Junction Box
RoHS标准 RoHS Compliant
