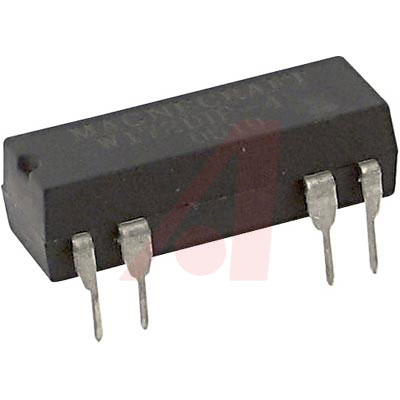

Reed Relays 24VDC 2.2KΩ 0.5ADC/0.25AAC SPDT 19x7.62x7.49mm THT Dry
Rhodium Contact, -40 to + 85 °C Operating Temperature Range, Miniature Reed Relays
Hermetically sealed and resistance to atmospheric contaminations. Fast operate and release times and when operated within their rated contact loads, have very long life. Glass insulation material, thermo set plastic enclosure material.
Allied Electronics:
Relay; Reed; Power; SPDT; Cur-Rtg 0.25A; Ctrl-V 24DC; Vol-Rtg 60/100AC/DC; PCB Mnt
MASTER:
Reed Relays 24VDC 2.2KOhm 0.5ADC/0.25AAC SPDT 19x7.62x7.49mm THT Dry
Electro Sonic:
Reed Relays 24VDC 2.2KOhm 0.5ADC/0.25AAC SPDT 19x7.62x7.49mm THT Dry
额定电压DC 24.0 V
额定电流 0.25 A
绝缘电阻 1 GΩ
额定功率 270 mW
触点类型 SPDT
触点额定电流 250 mA
线圈电压 24.0V, 24.0Vmax
线圈电流 10.9 mA
线圈功率DC 270 mW
线圈电阻 2.2 KΩ
载流 250 mA
线圈电压DC 24 V
额定电压 100 VDC
安装方式 Through Hole
引脚数 8
封装 DIP
封装 DIP
重量 1 g
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490055
