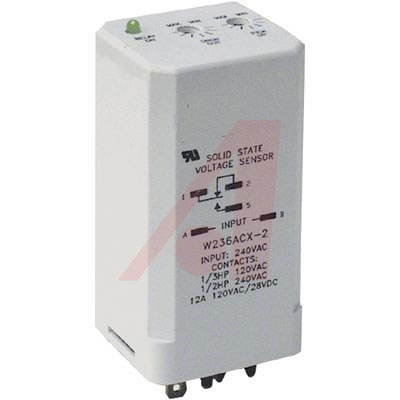

Relay, SSR, Voltage Monitor, SPDT, 13A, 120VAC, 236 Series
The 236 Series voltage sensor combines solid state sensing circuitry with a SPDT 13 amp relay. The single pole version has recessed potentiometers for adjustment. The double pole version has knob adjustments. Pull-in voltage is 75 to 115% of nominal voltage. Dropout is 75 to 95% of set pick up.
**Features:**
* Silver Alloy Contact Material
* SPDT Contact Configuration
* 500 mW Minimum Contact Load
* 100 Milliohms at 6 VDC Initial Contact Resistance
* 3.5 VA Power Consumption
* Transient and Reverse Polarity Protection
* Continuous Duty
* 500 V Dielectric Strength Across Open Contacts
* 1500 V Dielectric Strength Between Mutually Isolated Points
* -20 to +55 °C Operating Temperature Range
* -40 to +85 °C Storage Temperature Range
* 100000 Hours Electrical Life
* 5000000 Hours SPDT Mechanical Life
* Any Type of Mounting Position
* SK-SQB11-DS SPDT, SK-CIR8-DS DPDT Mating Socket
* 4.4 Oz. SPDT Weight
* Opaque Polycarbonate Enclosure
* Square Base
* UL Recognized, CSA Certified
**Applications:**
* Brownout Protection
* warning of Under Voltage Conditions
* Over Voltage Protection
