W235ACX-2概述

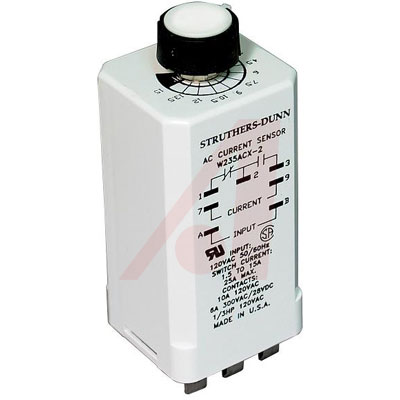

STRUTHERS-DUNN W235ACX-2 Current Monitoring Relay, 235 Series, SPDT, 10A, Panel, 120VAC, Quick Connect

Electromechanical Relay 120VAC 6ADC/10AAC SPDT 35.7x38.8x81.7mm Plug-In Current Sensing Relay

Allied Electronics:
Relay; SSR; Current Monitor; SPDT; Cur-Rtg 10/6AAC/ADC; Ctrl-V 120AC; Quick Connect

Newark:
# STRUTHERS-DUNN W235ACX-2 Current Monitoring Relay, 235 Series, SPDT, 10 A, Panel, 120 VAC, Quick Connect

MASTER:
Electromechanical Relay 120VAC 6ADC/10AAC SPDT 35.7x38.8x81.7mm Plug-In Current Sensing Relay

Online Components:
Electromechanical Relay 120VAC 6ADC/10AAC SPDT 35.7x38.8x81.7mm Plug-In Current Sensing Relay

Electro Sonic:
Electromechanical Relay 120VAC 6ADC/10AAC SPDT 35.7x38.8x81.7mm Plug-In Current Sensing Relay

W235ACX-2中文资料参数规格

技术参数

额定电流 15 A

额定功率 500 mW

触点类型 SPDT

功耗 2 VA

线圈电流 15 mA

线圈电压AC 120 V

载流 10.0 A

额定电流Max 10 A

额定电压DC Max 28 V

额定电压AC Max 120 V

电源电压Max 120 VAC

封装参数

安装方式 Plug In

引脚数 9

物理参数

工作温度 -10℃ ~ 55℃

符合标准

RoHS标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536410020

数据手册

在线购买W235ACX-2

型号： W235ACX-2

制造商： Struthers-Dunn

描述：STRUTHERS-DUNN W235ACX-2 Current Monitoring Relay, 235 Series, SPDT, 10A, Panel, 120VAC, Quick Connect
