WHS7-1R5JT07

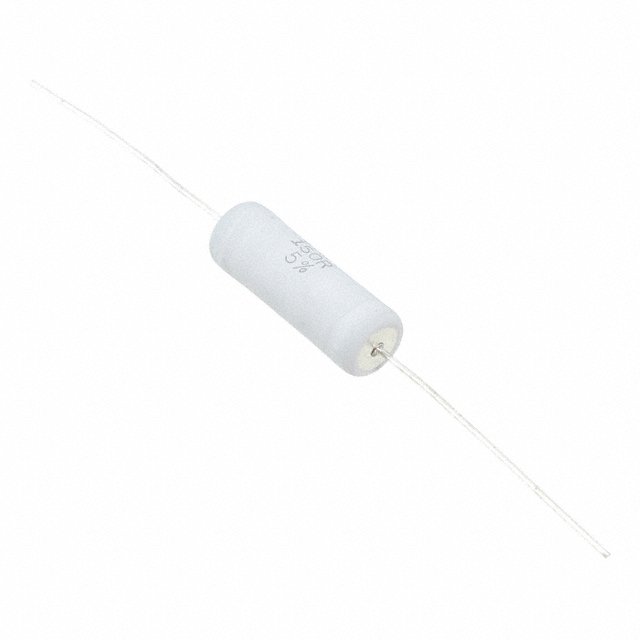

WHS7-1R5JT07图片1
WHS7-1R5JT07图片2
WHS7-1R5JT07图片3
WHS7-1R5JT07概述

WELWYN  WHS7-1R5JT07  通孔电阻器, WH系列, 1.5 ohm, 7 W, ± 5%, 轴向引线

is manufactured by WELWYN and is categorized in the Through Hole Resistors category. WHS7-1R5JT07 is described as RES 1.5 OHM 7W 5% AXIAL. Perfect Parts is a supplier of Resistors and other Passives.


得捷:
RES 1.5 OHM 7W 5% AXIAL


贸泽:
Wirewound Resistors - Through Hole WHS High Surge


e络盟:
通孔电阻器, 1.5 ohm, WH系列, 7 W, ± 5%, 轴向引线


艾睿:
Res Wirewound 1.5 Ohm 5% 7W ±200ppm/°C Cement AXL T/R


WHS7-1R5JT07中文资料参数规格
技术参数

额定电压DC 700 V

容差 ±5 %

额定功率 7 W

电阻 1.5 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 700 V

封装参数

安装方式 Through Hole

封装 轴向引线

外形尺寸

长度 25 mm

脚长度 28.3 mm

封装 轴向引线

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买WHS7-1R5JT07
型号: WHS7-1R5JT07
描述:WELWYN  WHS7-1R5JT07  通孔电阻器, WH系列, 1.5 ohm, 7 W, ± 5%, 轴向引线
