Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC 2Pin

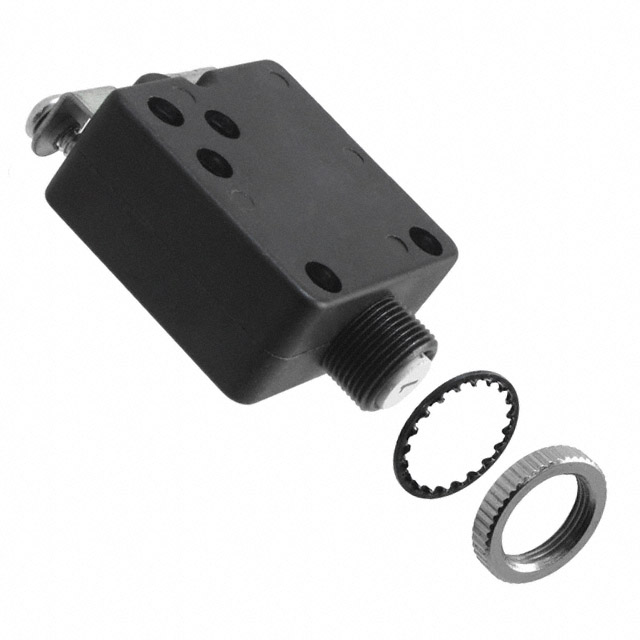

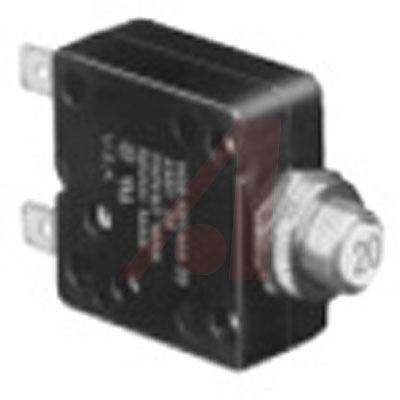

Thermal circuit breaker, single pole, 7 A current rating, series trip circuit, push-to-reset actuator style, knurled nut/lockwasher mounting.
**Features:**
* 0.5 Amp to 30 Amp Ratings
* Cannot Be Manually Tripped
* Button Extends for Visual Indication
* Push Button to Reset Breaker
* Termination is Screw or 0.250" QC
* Bottom Marked Amperage Rating Optionally Available
艾睿:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC
Allied Electronics:
Circuit Breaker; Therm; Push; Cur-Rtg 7A; Panel; 1 Pole; Vol-Rtg 250/50VAC/VDC
安富利:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC
Chip1Stop:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC 2-Pin
Verical:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC
MASTER:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC
Online Components:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC
Electro Sonic:
Circuit Breaker Thermal 1Pole 7A 250VAC/50VDC
额定电压DC 50 V
接触器类型 Button
额定电压AC 250 V
工作电压 250 V
跳闸时间 6s ~ 30s
额定电流 7 A
跳闸电流 7 A
工作温度Max 60 ℃
工作温度Min -20 ℃
额定电压 250 VAC
安装方式 Panel, Panel Screw

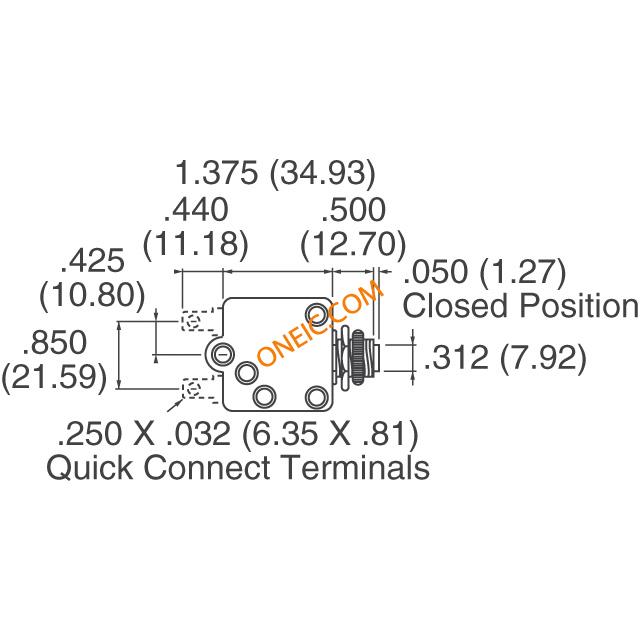

长度 34.93 mm

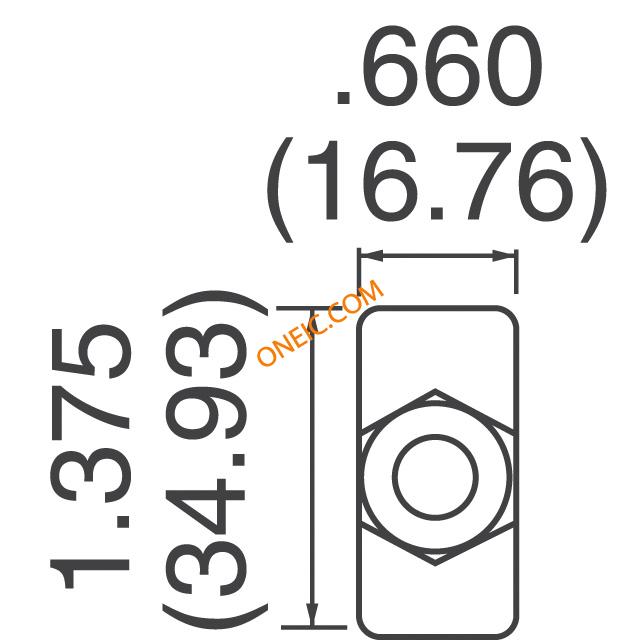

宽度 16.76 mm
高度 34.93 mm
颜色 White
工作温度 -20℃ ~ 60℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536200020
