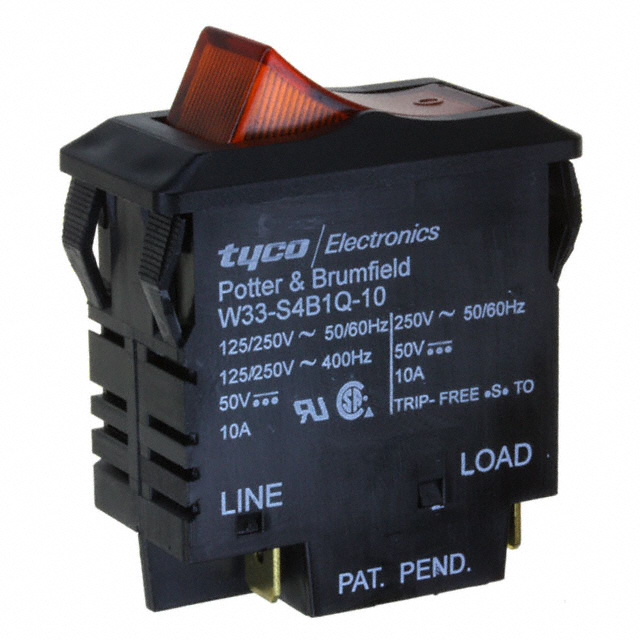

W33-S4B1Q-10图片14
W33-S4B1Q-10图片15
W33-S4B1Q-10图片16
W33-S4B1Q-10概述

Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC 4Pin

**Features:**

* Combines On/Off Switch and Circuit Protection in a Single Unit

* 2 to 20 Amp Ratings

* One or Two Pole Sensing

* Lighted or Non-Lighted Rocker Actuator in Various Colors

* Convenient, Snap-In Mounting

* Optional Auxiliary Switch Available

* Trip-Free Operation


立创商城:
W33-S4B1Q-10


艾睿:
Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC


Allied Electronics:
Circuit Breaker; Thermal; Rocker; Cur-Rtg 10A; 2 Pole; W33 Series


安富利:
Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC


Chip1Stop:
Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC 4-Pin


Verical:
Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC


MASTER:
Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC


Online Components:
Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC


Electro Sonic:
Circuit Breaker, Thermal - Switch+Breaker - Amber - 120Vac Neon


W33-S4B1Q-10中文资料参数规格
技术参数

额定电压DC 50 V

接触器类型 Rocker

额定电压AC 250 V

工作电压 50.0 V

跳闸时间 3s ~ 33s

额定电流 10 A

额定电压 250 VAC

封装参数

安装方式 Panel, Snap-In

封装 -

外形尺寸

长度 43.79 mm

宽度 21.59 mm

高度 42.93 mm

封装 -

物理参数

颜色 Amber

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536200020

数据手册

在线购买W33-S4B1Q-10
型号: W33-S4B1Q-10
制造商: TE Connectivity 泰科
描述:Circuit Breaker Thermal 2Pole 10A 250VAC/50VDC 4Pin
