WR12X7502FTL

75KΩ7502 ±1% 编带

华新科 贴片 1206 75KΩ ±1%

立创商城:
75kΩ ±1% 250mW

艾睿:

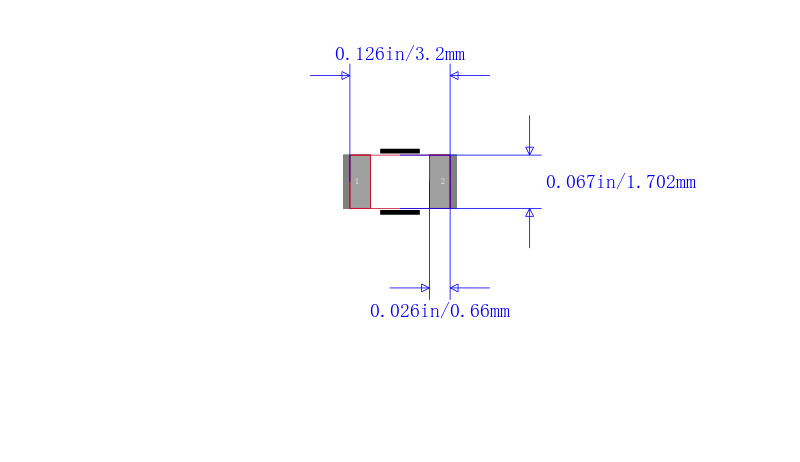

This is a WR12X7502FTL fixed single surface-mount resistor from Walsin Technology Corporation. This durable part has a power rating of 0.25 1/4 W. This product has a resistance value of 75K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.1 mm long, 0.6 mm tall and 1.6 mm deep. This device is made with thick film technology. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C.

Verical:
Res Thick Film 1206 75K Ohm 1% 0.25W1/4W ±100ppm/C Pad SMD T/R
